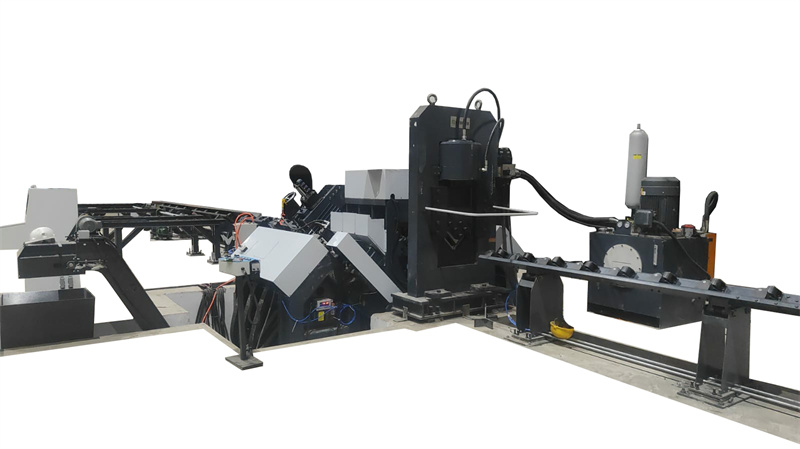

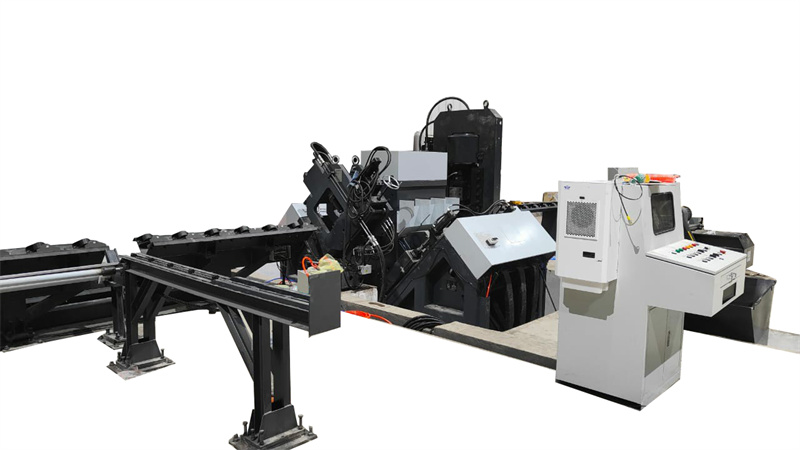

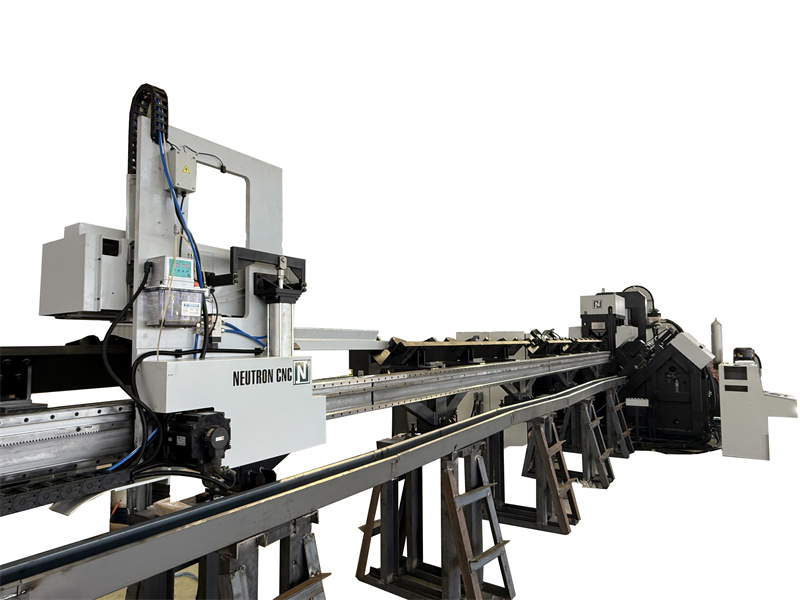

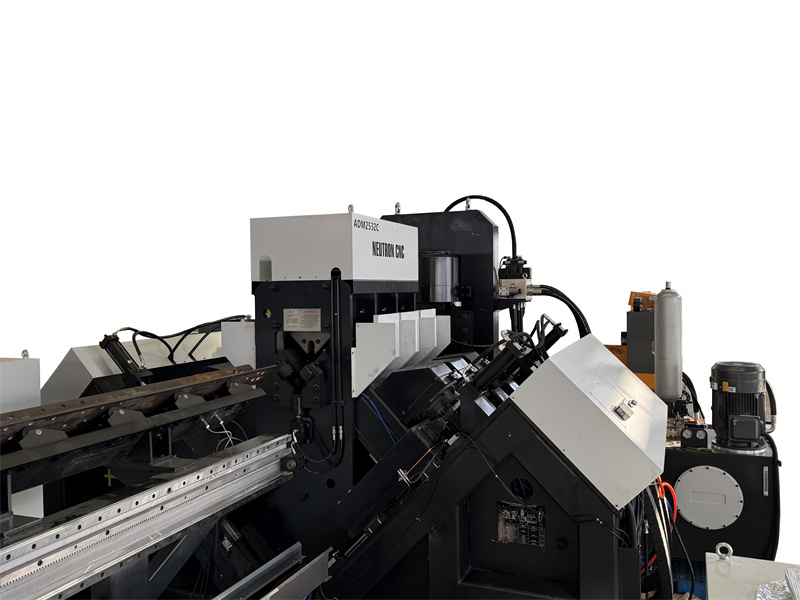

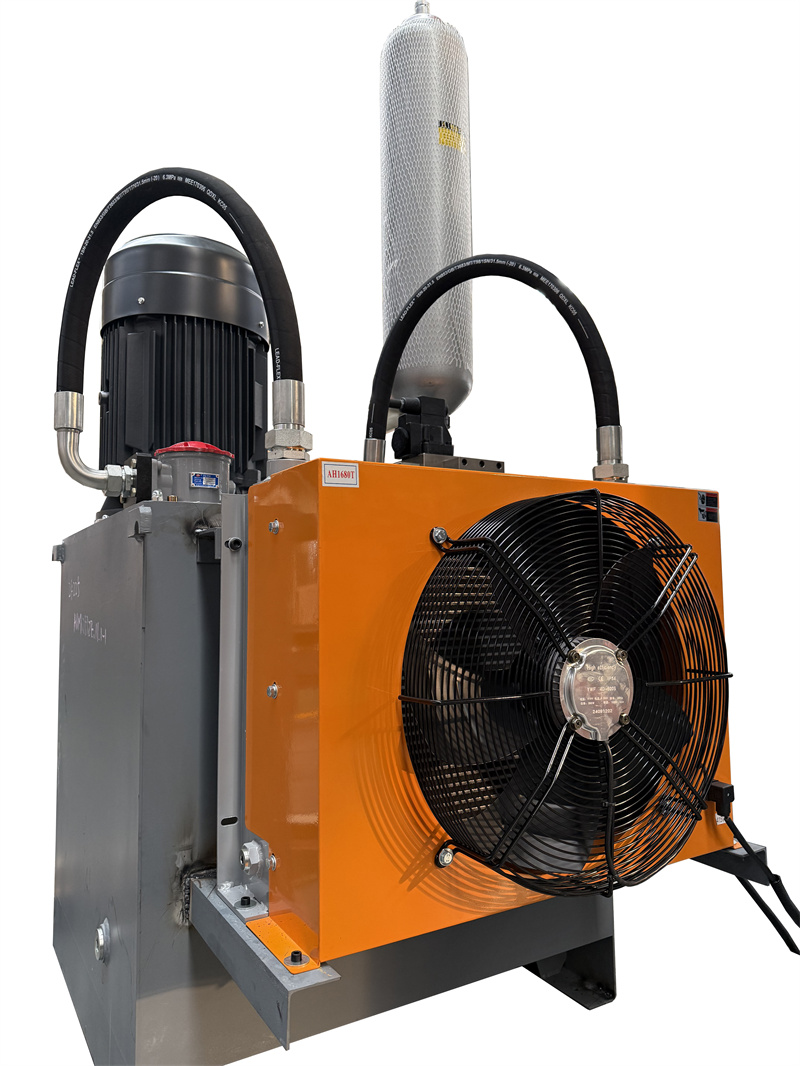

CNC High-speed Drilling and Marking Machine for Angles Model ADM2532

1. Technical specification of ADM2532

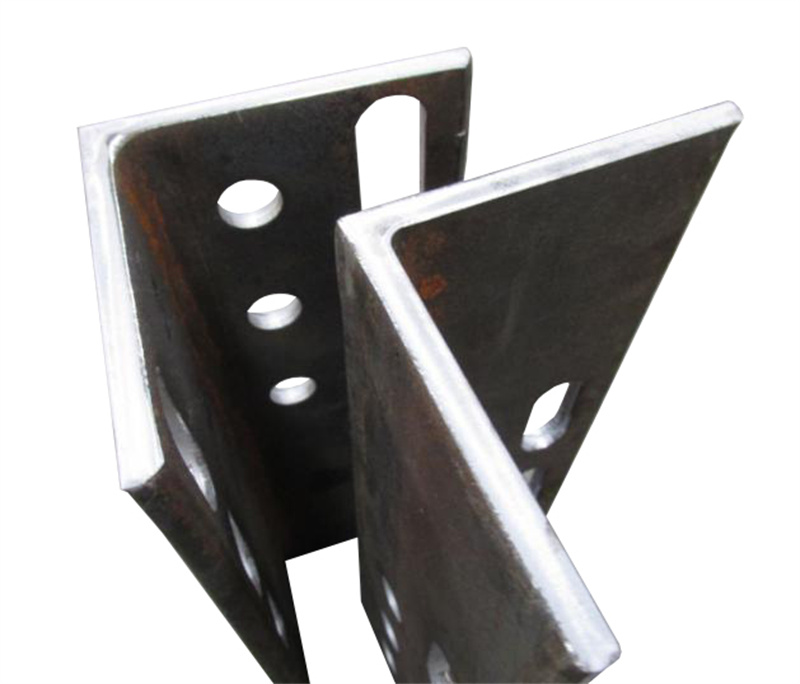

1) Angle size(mm):                          140×140×10 ~ 250×250×32

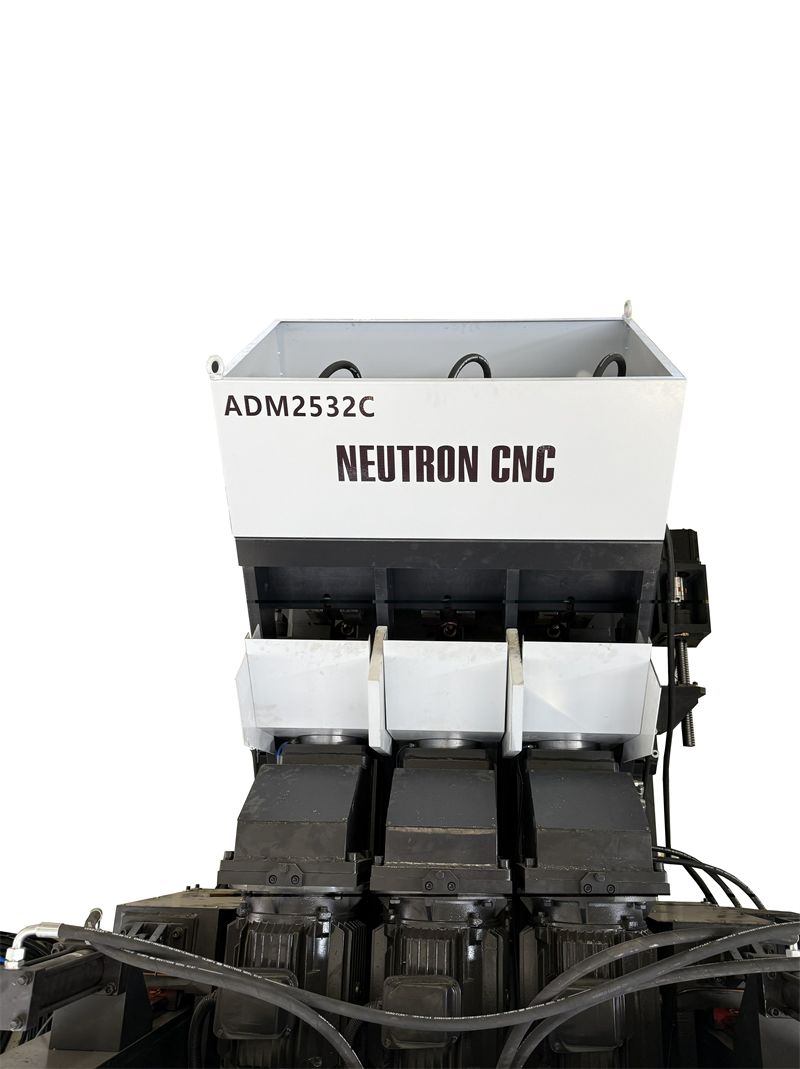

2) Stadia range:50-220 (stepless) (mm):                          50 ~ 220

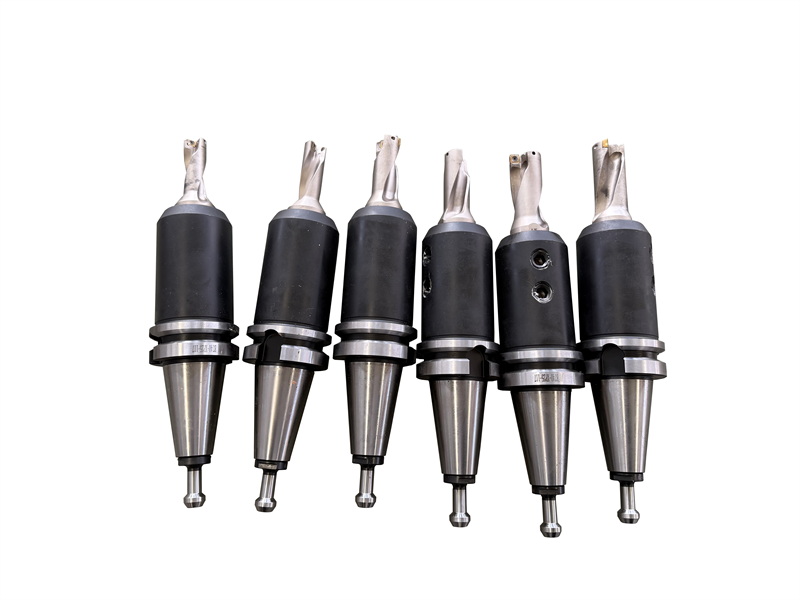

3) Quantity of drilling row per side:                          arbitrariness

4) Quantity of drilling spindle per side:                                3

5) Drilling diameter (carbide drilling head)(mm):               φ17.5 ~ φ26

6) Morse tamper of drilling spindle:                                BT40

7) Max. rotation speed of drilling spindle (r/min) /power (kw):      6000/6X11

8) Quantity of CNC axis:                                            9

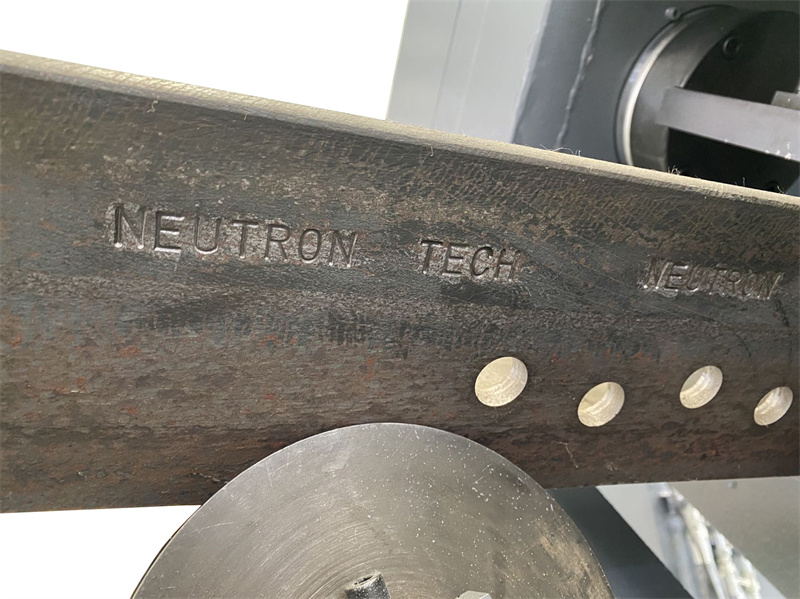

9) Max.length of workpiece :                                         12

10) Angle feeding speed ( m/min):                                     40

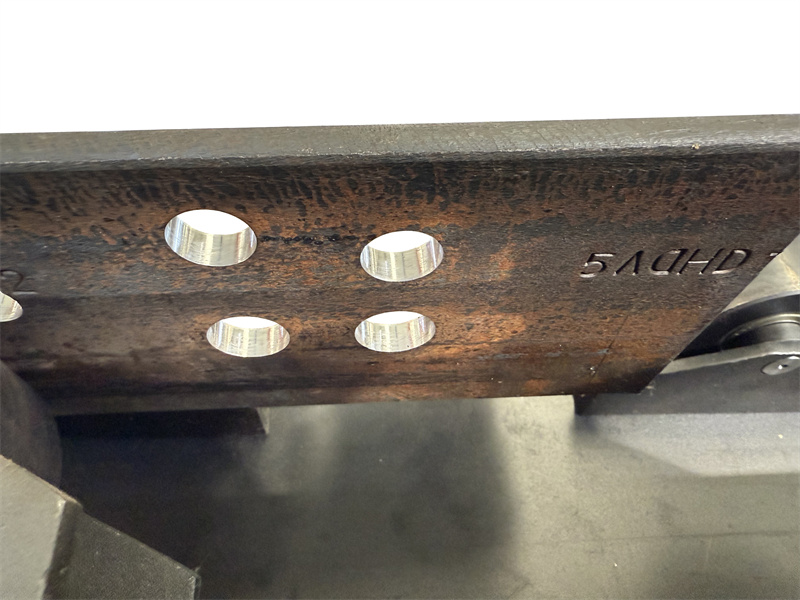

11) Norminal marking force (kN):                                   1030

12) Quantity of character group:                                        1

13) Quantity of marking per group:                                     18

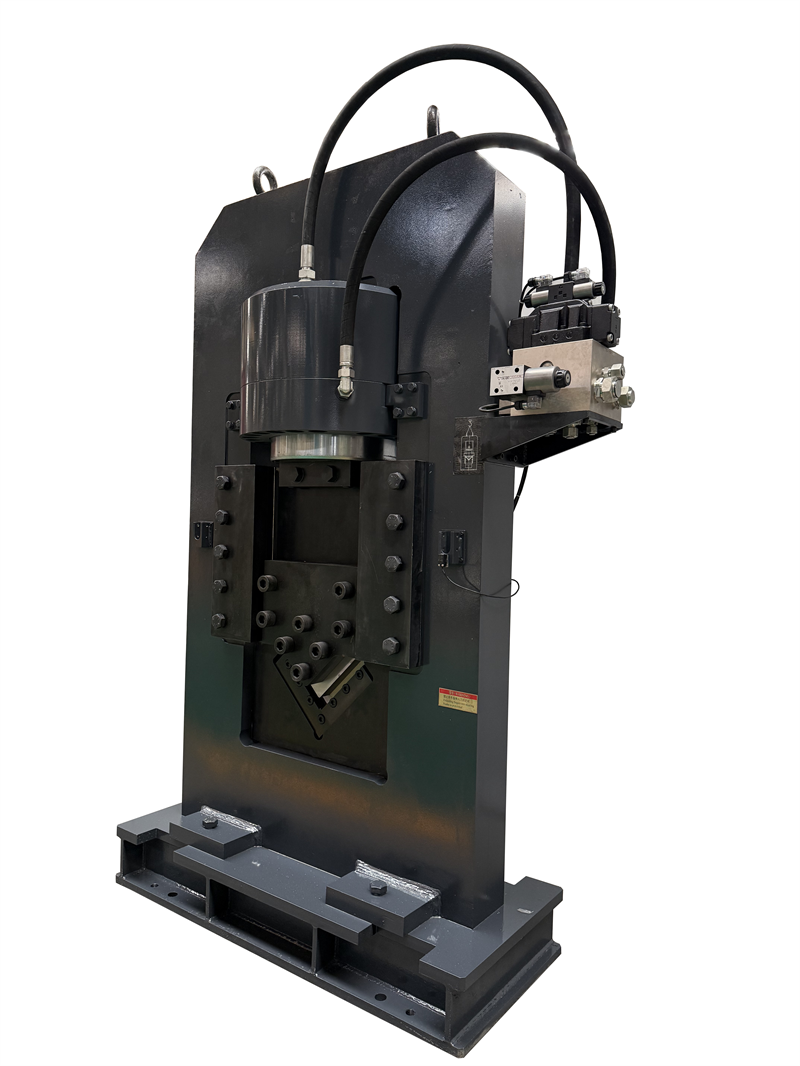

14) Cutting unit：                                              Optional

15) The finished angel conveyor is rotated to one side by pneumatic power. The max. length of finished angel is 12 m.

16) There are four transverse conveyors which can infeed  automatically and intermittently.

17) Type of programming: keyboard input, USB interface input, floppy disc input.

18) Air pressure: ≥1.0Mpa; emissions: ≥1.0m3/min

19) Layout:

20) Working pressure of Gas supply：≥1.0Mpa；displacement≥3.0m3/min

21) Working temperature: 0℃~ 40℃

Power: Three phase four wire system

AC Voltage: 380V

Fluctuation of voltage: ±10%

Frequency: 50 Hz

2. The list of the main outsourcing components of  ADM2532
