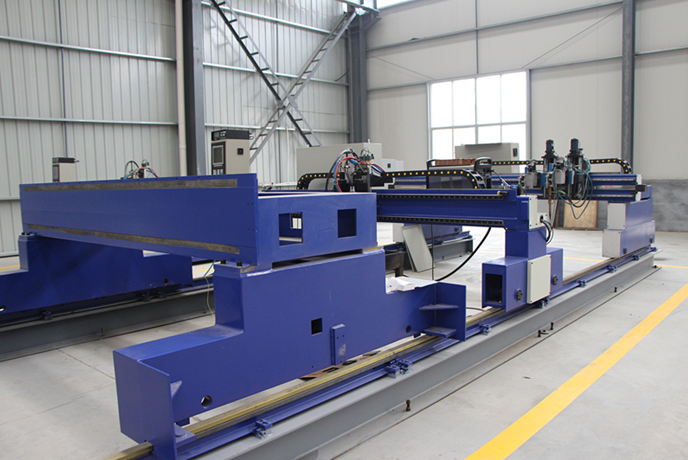

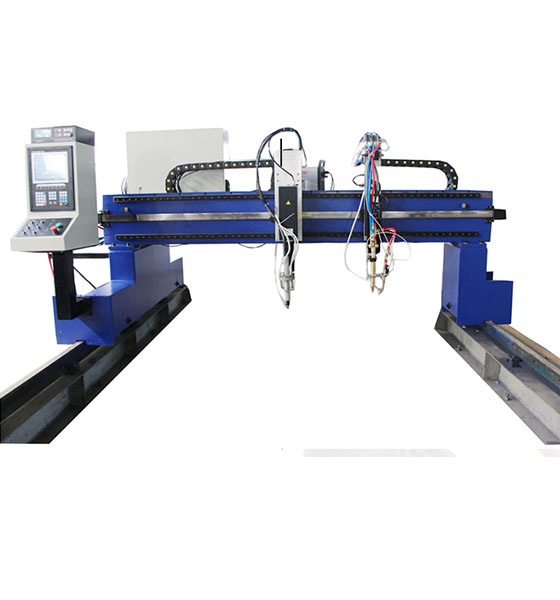

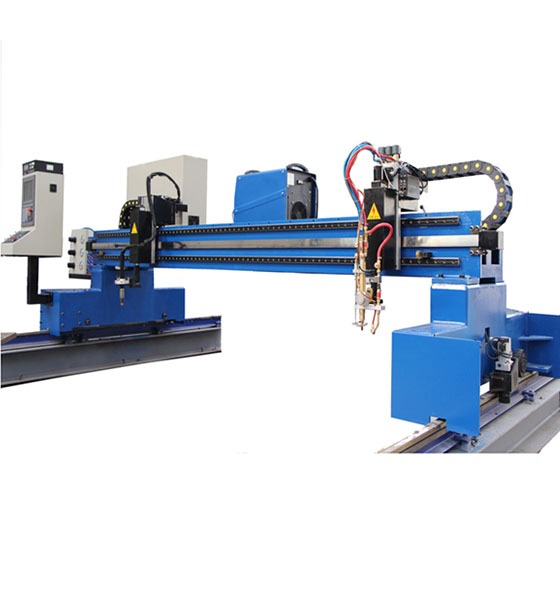

CNC Plasma/Flame Cutting Machine QGZⅡ-4x15
<
>
CNC Plasma/Flame Cutting Machine QGZⅡ-4x15
Product number QGZⅡ-4x15
Working voltage 380V±10%
Supply frequency 50Hz±1%
Ambient temperature 0-50℃
Relative humidity 95%(non-frozen)


CNC Plasma/Flame Cutting Machine QGZⅡ-4x15



No

Item

Specification

1

Horizontal   track space

4m

2

Effective cutting width

3m

3

Longitudinal track space

15m

4

Effective cutting   length

13m

5

Plasma power source

Hypertherm 400A

6

Plasma cutting thickness

Stainless steel ≤30mm (piercing);

≤50mm(edge cutting)

Carbon steel ≤40mm (piercing);

≤60mm(edge cutting)

7

Plasma torch lifting height

170 mm

8

Plasma cutting speed

0-4000 mm/min

9

Arc voltage height controller

1 set

10

CNC flame torch

1 set

11

Capacitance type automatic height-adjusting   device

1 set

12

Control switch

CCC certificated

13

idle running speed

0-10000 mm/min

14

cutting surface roughness

Ra≤12.5µm

   15

Driving system

AC double-side  servo driven
