| Product number | YJZ-80B | |
|---|---|---|
| Max flange thickness: 80mm Flange width: 200-1000mm | Web height: ≥380 mm Work pieces material: Q345 （ 16Mn ） | |
| Flange thickness and width list (unit mm) Flange thickness 20 ～ 30 30 ～ 40 40 ～ 50 50 ～ 60 60 ～ 80 | Flange width 200 ～ 350 350 ～ 500 500 ～ 700 700 ～ 800 800 ～ 1000 | |
| Max straightening speed: 6.1m/min | Hydraulic station power: 22kW | |
| Roller motor power: 6KW | Hydraulic system working press: 20MPa |

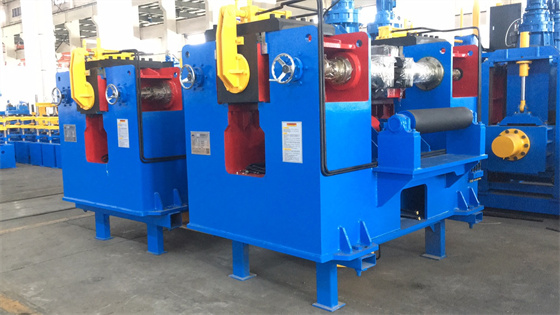

This machine is used for straightening the deformaiton of H beam flange plate.

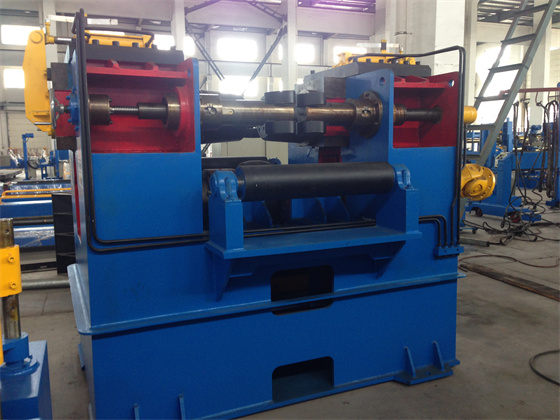

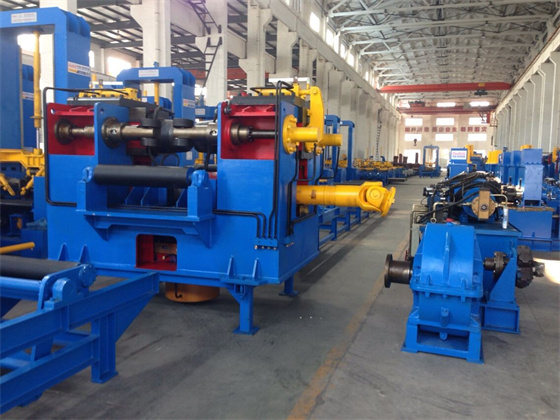

It is composed of machine frame , upper straightening roller , web plate clamp device , assistant support roller ,
lift oil cylinder, bottom straight roller, main transmission part ,input/output elevating roller, hydraulic system and
electrical control system.

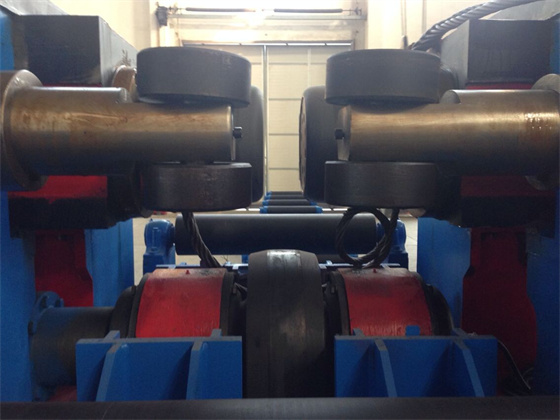

The straightening principle: two upper straightening roller press two side of flange plate, one bottom roller
support the center of flange , through the pushing of oil cylinder then up-press to the center of flange that
reach to staightening the deformation of flange plate.
Supply range:
a. Straightening machine: frame, motor reducer, universal jointer

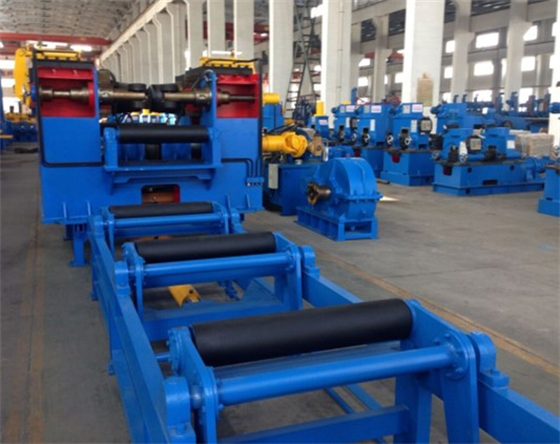

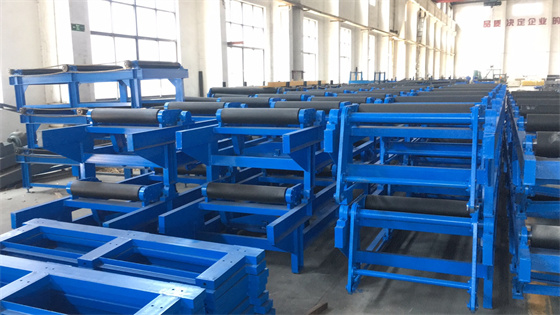

b. Elevating roller: input and output hydraulic elevating driving roller 11m*2pcs

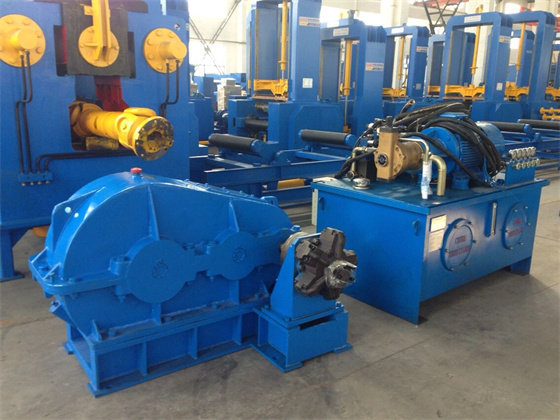

c. Hydraulic system: Hydraulic station, hydraulic cylinder and high press soft pipe.
d. Electrical control system: Electrical control box, control cable
