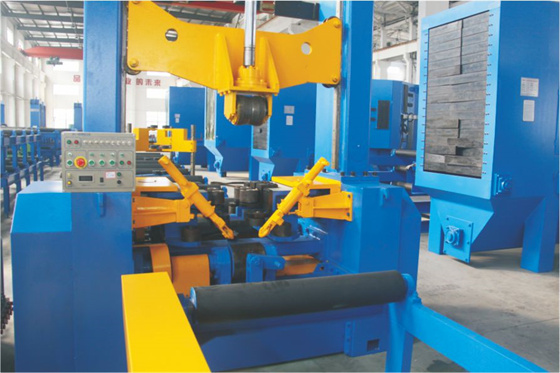

H-beam Assembling and Welding Machine Model HZJ0818
<
>
H-beam Assembling and Welding Machine Model HZJ0818
Product number HZJ0818
Height of web: 160-1800mm Thickness of web: 5-50mm
Width of flange: 160-800mm Thickness of flange: 5-60mm
Loaded weight: ≦20 T Assembly speed: 0.5-6 m/min
Main motor power: 5.5 kW Hydraulic station power: 5.5 kW


H beam is a metal structure composed of one web plate and two flange plates, it is widely used in agriculture, industrial and construction area.

HZJ-0818 automatic welding machine is composed of main machine(1set), 350 CO2 welders(2sets), power convey roller (one section each in front of and back of main machine), idler convey roller (two sections each in front of and back of main machine), power draw bar(1 piece), idler draw bar(1piece), hydraulic system(1set), electrical control system(1set)and so on.


 Machine Components and Supply Range:

Main machine: including main machine base, web-flange centering clamp device, upper gantry, main transition motor and retarder.

Convey roller: 2 sections of power convey roller, 4 sections of idler convey roller, 2 pieces of draw bar box.

Hydraulic system: including hydraulic pump station, high pressure pipe, hydraulic cylinder and so on.

Electrical control system: including electrical control box, operation box, AC inverter, PLC and so on.

Automatic spot welding system: including 2sets of welding torch fixing device, 2sets of Aotai NBC-500 CO2 weldersother brand are also available
