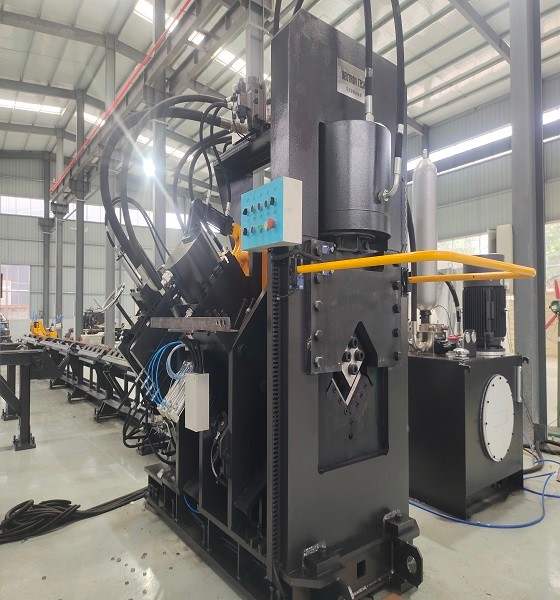

APM2020 CNC Punching Marking and Cutting Machine for Angles
<
>
APM2020 CNC Punching Marking and Cutting Machine for Angles
Product number APM2020
Working temperature 0℃~ 40℃
Power Three phase four wire system
AC Voltage 380V
Fluctuation of voltage ±10%


Technical specification of  APM2020
1)Angle size: ∠63×63×4 ~ ∠200×200×20
2)Max. punching diameter  φ25.5mm (20mm thickness ,  Q345)
Norminal punching force 1100KN
3)Quantity of punching head per side: 3
4)Quantity of punching row per side: arbitrariness
5)Quantity of character group:  4 groups,Norminal Marking force:1030KN
6)Dimension of characters: 14×10mm(18)
7)Max. length of the raw angle: 14m

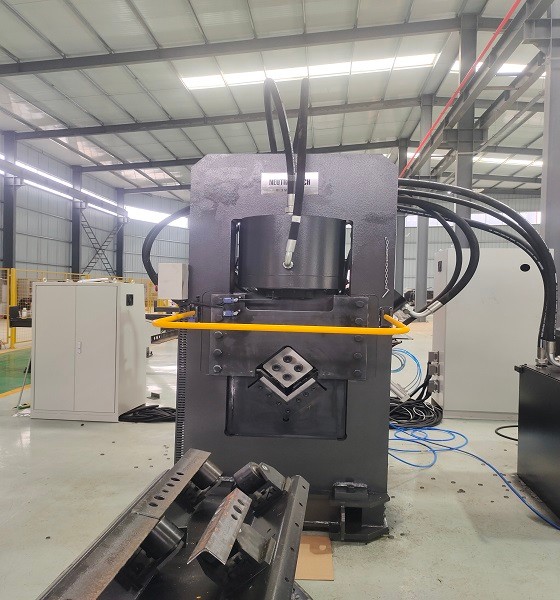

8)Cutting mode: double-blade cutting ,norminal cutting force 1800kN
9)Quantity of CNC axes: 3
10)The finished angle conveyor is rotated to one side by pneumatic power, the max. length of finished angle is 12m.
11)There are four sets of transverse conveyor, infeed automatically and intermittently.
12)Angle feeding Speed: 40m/min, the effiency is about 1000 holes/hour
13)Type of programming: keyboard input, USB interface input, floppy disc input
14)Layout:
15)Working environment:
Working temperature:  0℃~ 40℃
Power:  Three phase four wire system
AC Voltage:  380V
Fluctuation of voltage:  ±10%
Frequency:  50 Hz
