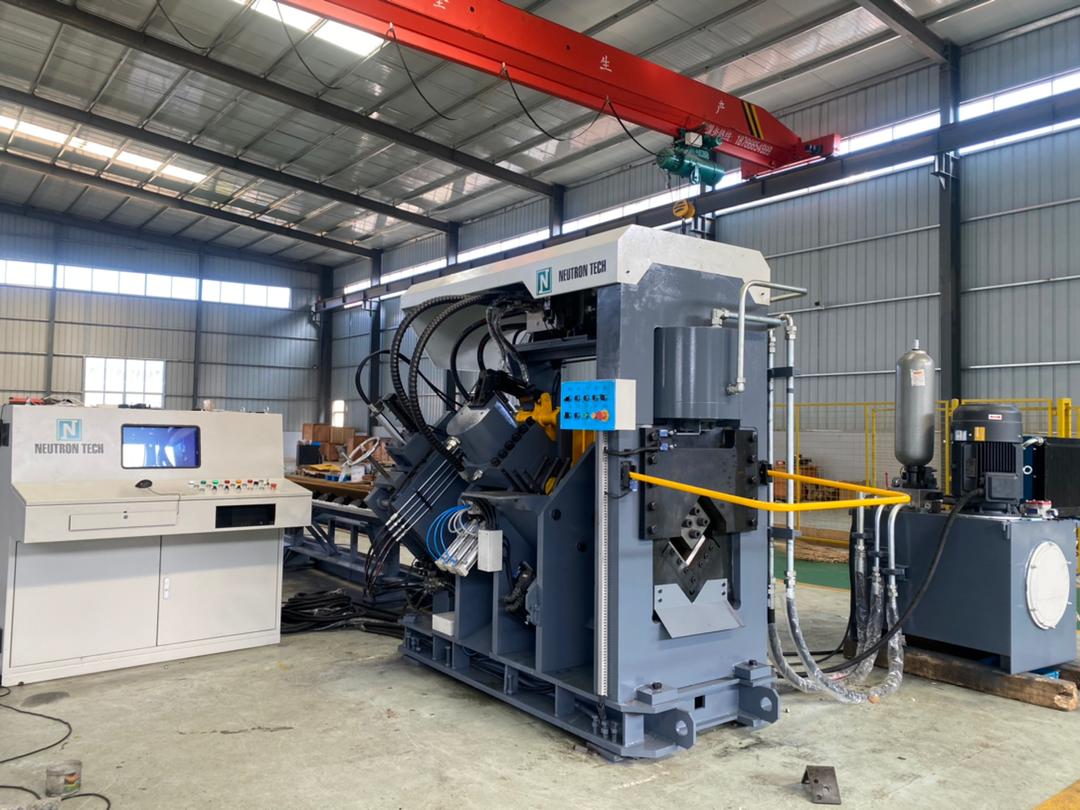

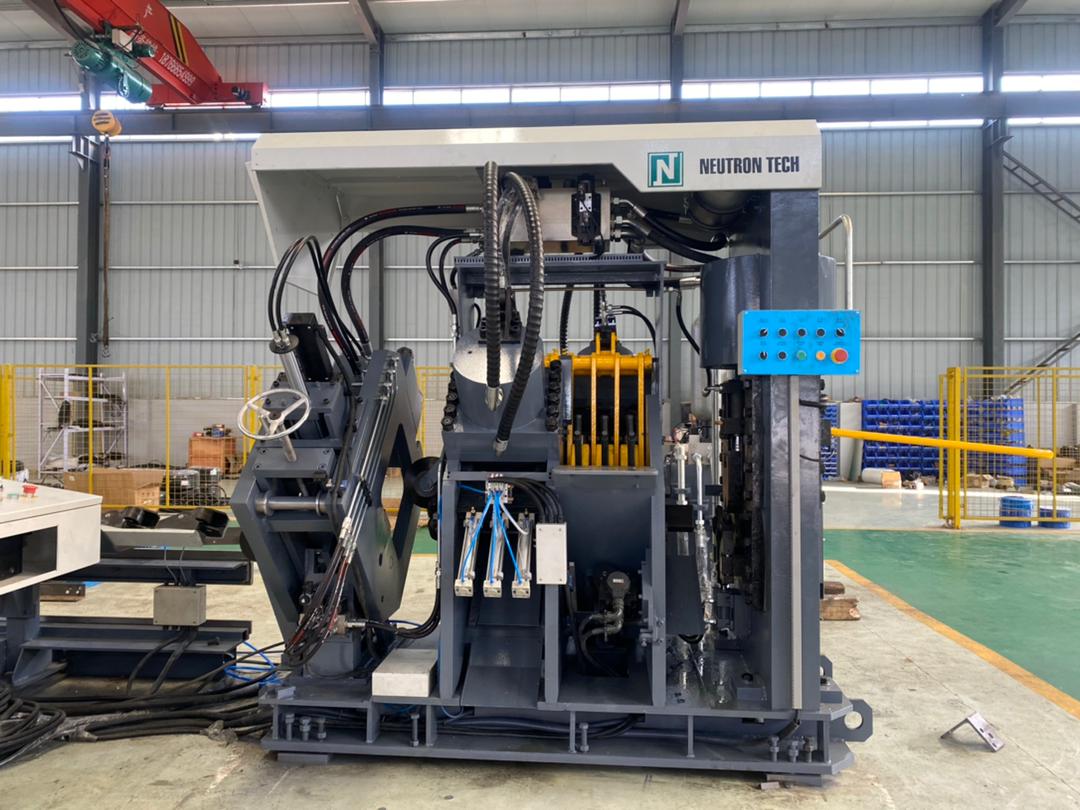

APM2020B CNC Punching, Marking and Cutting Machine for Angles Model

Product number		APM2020B
Working temperature		0℃~ 40℃
Power		Three phase four wire system
AC Voltage		380V
Fluctuation of voltage		±10%

Product parameters

Technical specification of APM2020

1.Angle size: ∠63×63×4 ~ ∠200×200×20

2.Max. punching diameter φ25.5mm (20mm thickness , Q345)

Norminal punching force 1100KN

3.Quantity of punching head per side: 3

4.Quantity of punching row per side: arbitrariness

5.Quantity of character group: 4 groups,Norminal Marking force:1030KN

6.Dimension of characters: 14×10mm(18)

7.Max. length of the raw angle: 14m

8.Cutting mode: double-blade cutting ,norminal cutting force 1800kN

9.Quantity of CNC axes: 3

10.The finished angle conveyor is rotated to one side by pneumatic power, the max. length of finished angle is 12m.

11.There are four sets of transverse conveyor, infeed automatically and intermittently.

12.Angle feeding Speed: 40m/min, the effiency is about 1000 holes/hour

13.Type of programming: keyboard input, USB interface input, floppy disc input

Layout:

1.Working environment:

2.Working temperature: 0ºC~ 40ºC
3.Power: Three phase four wire system
4.AC Voltage: 380V
5.Fluctuation of voltage: ±10%
6.Frequency: 50 Hz

Main Features

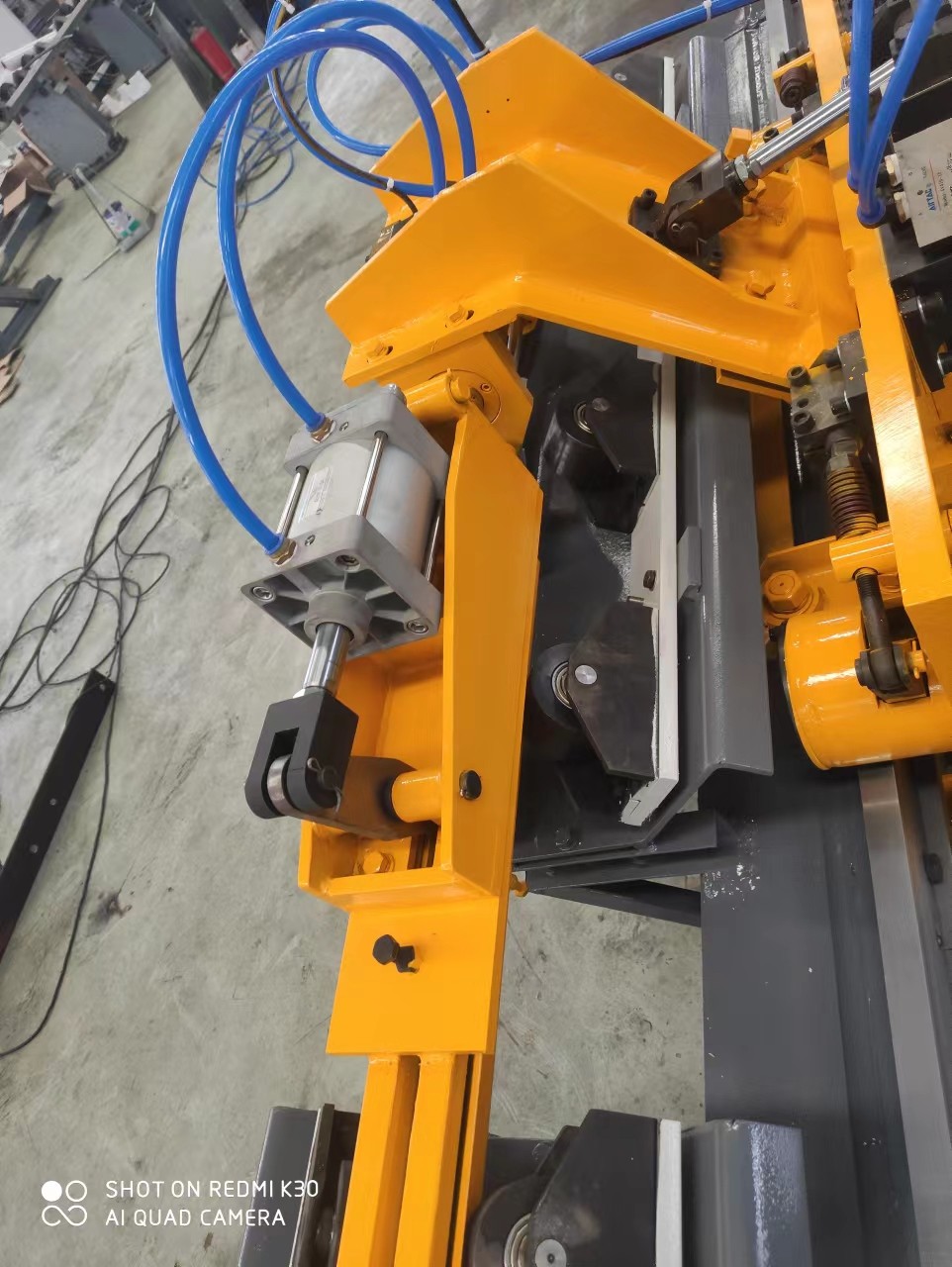

1-Infeed conveyor & Feeding carriage-Fast, Reliable & Precision
2-Transverse conveyor & Auto Loading System-High Efficiency
3-Marking Unit-Four Group Marking Characters Boxes Auto Chosen

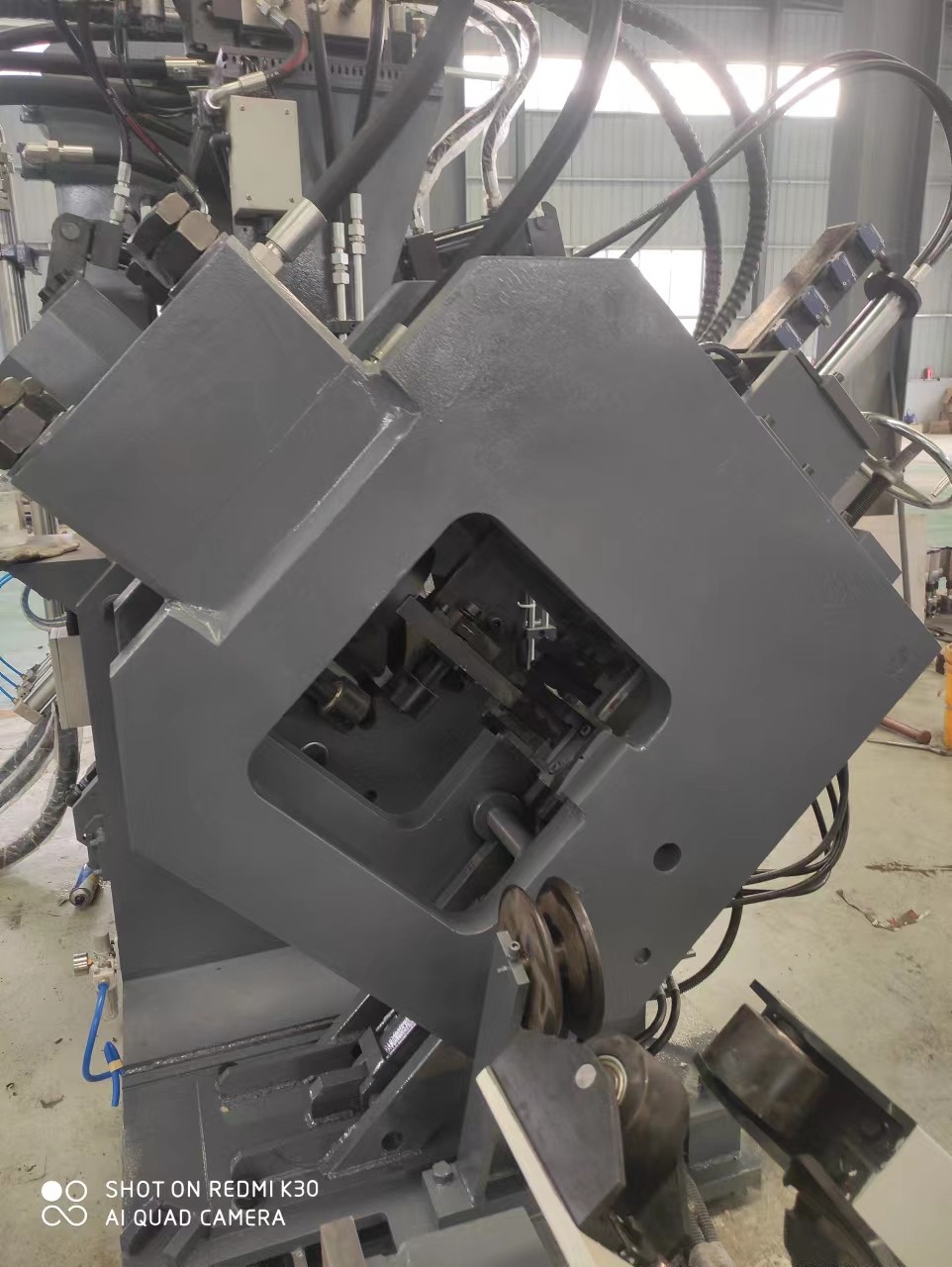

4-Punching Unit-Fast Punching Speed & 3 Different Diameters Auto Chosen
5-Cutting Unit-Single Cutting, High Accuracy & No Material Wasted
6-Outfeed conveyor & Unloading System-Auto Unloading Workpiece
7-Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
8-Hydraulic Unit & Cooling System-Powerful Pressure & Air Cooling System

Angle size:(mm)	63×63×4-200×200×20(Q345)
Norminal Marking force (kN)	1030
Norminal punching force 1100 (KN)	1100
norminal cutting force (kN)	4300
Max. punching diameter (mm)	φ26
Max. length of the raw angle: (m)	14
Quantity of character group	4
Quantity of characters of each group	18
Dimension of characters (mm)	14×10×19
Cutting mode	Double-blade cutting
Total power (kw)	43.5
General size (m)	32×7×2.2
Net weight (T)	Approx.20
