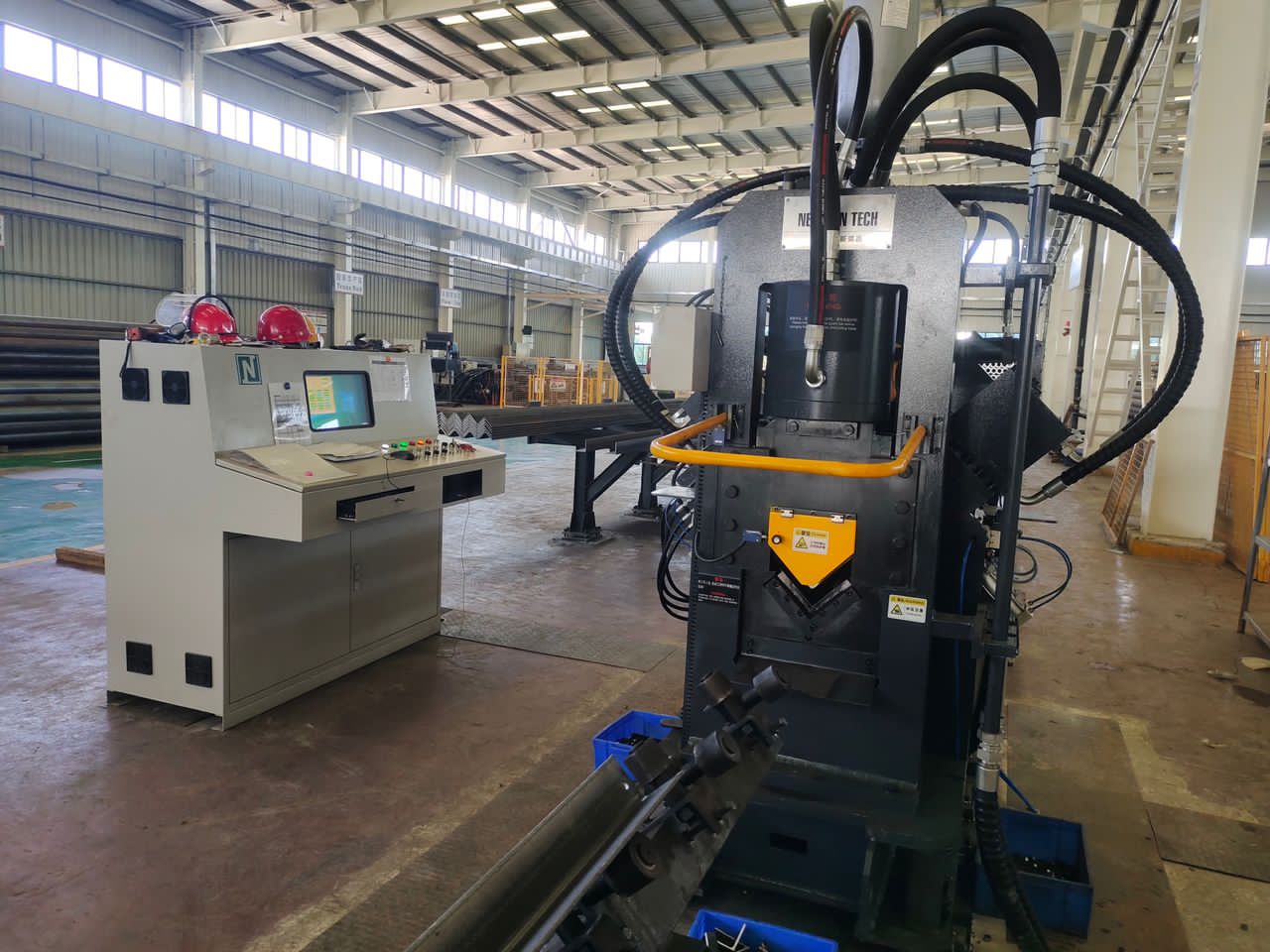

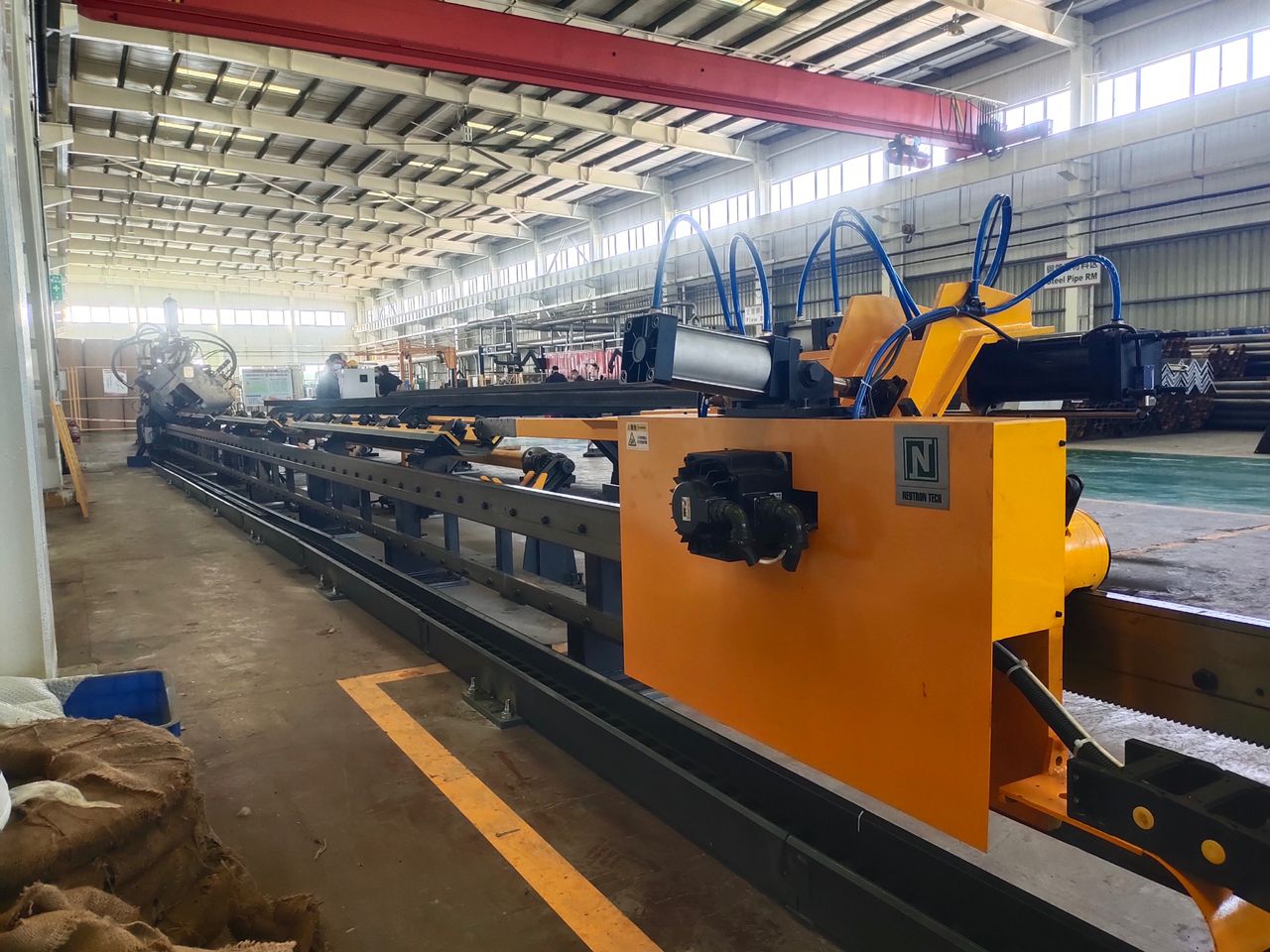

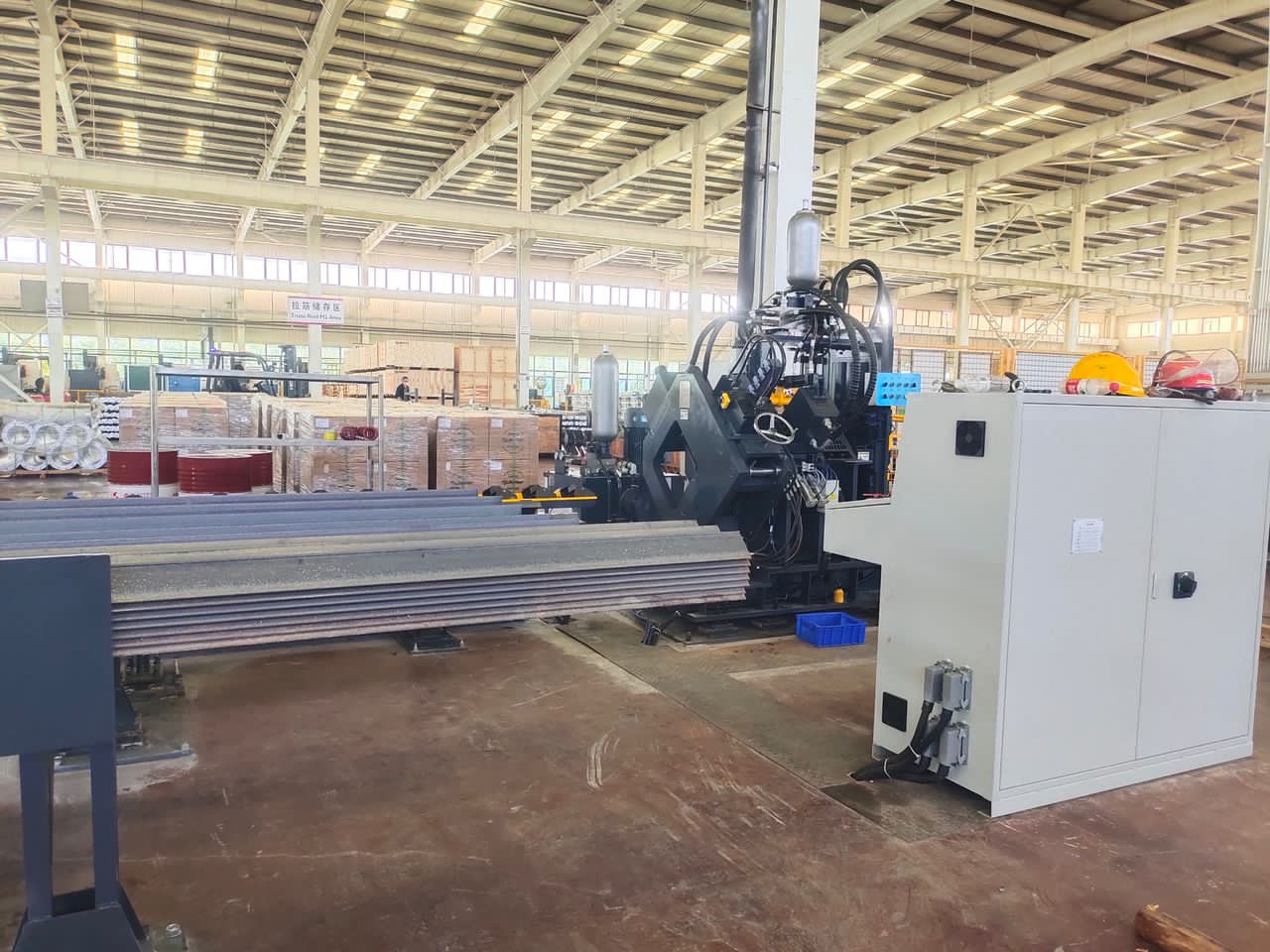

APM0908 CNC Punching, Marking and Cutting Machine for Angles Model
<
>
APM0908 CNC Punching, Marking and Cutting Machine for Angles Model
Product number APM0908
Working temperature 0℃~ 40℃
Power Three phase four wire system
AC Voltage 380V
Fluctuation of voltage ±10%

1. Technical specification of APM0908
1)Angle size:         ∠40×3 ~ ∠90×8(Q345)
2)Max. punching diameter:  Φ25.5mm  (8mm thickness, Q345)
Nominal punching force:   350KN
3)Nominal Marking force:   630kN
4)Nominal Cutting force: 1000KN
5)Max length of the raw angle :  12m
6)Quantity of punching head per side:  2
7)The quantity of punching row per side:  arbitrariness
8)Quantity of character group:   4 group
9)Dimension of characters:   14×10mm
10)Cutting mode:   Single-blade cutting
11)Quantity of CNC axes:      3
12)Angle feeding Speed: 60m/min
13)The size of machine: 25×7×2.2m
14)The finished angel conveyor is rotated to one side by pneumatic power. The max. length of finished angel is 8 m.
15)There are four transverse conveyors which can infeed automatically and intermittently.
16)Type of programming: keyboard input, USB interface input, floppy disc input.
17)Layout:
18)Working environment:
Working temperature: 0℃~ 40℃
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%

Frequency: 50 Hz
