APM1412 CNC Punching Marking and Cutting Machine for Angles
<
>
APM1412 CNC Punching Marking and Cutting Machine for Angles
Product number APM1412
Working temperature 0℃~ 40℃
Power Three phase four wire system
AC Voltage 380V
Fluctuation of voltage ±10%

Technical specification of APM1412
1)Angle size:         ∠40×3 ~ ∠140×12 (Q420)
2)Max. punching diameter:  Φ25.5mm  (12mm thickness, Q420)
Norminal punching force:   950KN
3)Nominal Marking force:    1030 kN
4)Quantity of punching head per side:  3
5)The quantity of punching row per side:  arbitrariness
6)Quantity of character group:   4 group
7)Quantity of marking per group:   18
8)Dimension of characters:   14×10mm
9)Max. length of the raw angle:    12m
10)Cutting mode:   Single-blade cutting
11)Nominal cutting Force:     1800KN
12)Quantity of CNC axes:      3
13)Angle feeding Speed: 40m/min, the effiency is about 1000 holes/hour
14)The finished angel conveyor is rotated to one side by pneumatic power. The max. length of finished angel is 8 m.
15)There are four transverse conveyors which can infeed automatically.
16)Type of programming: keyboard input, USB interface input.
17)Layout:
18)Working environment:
Working temperature: 0℃~ 40℃
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz

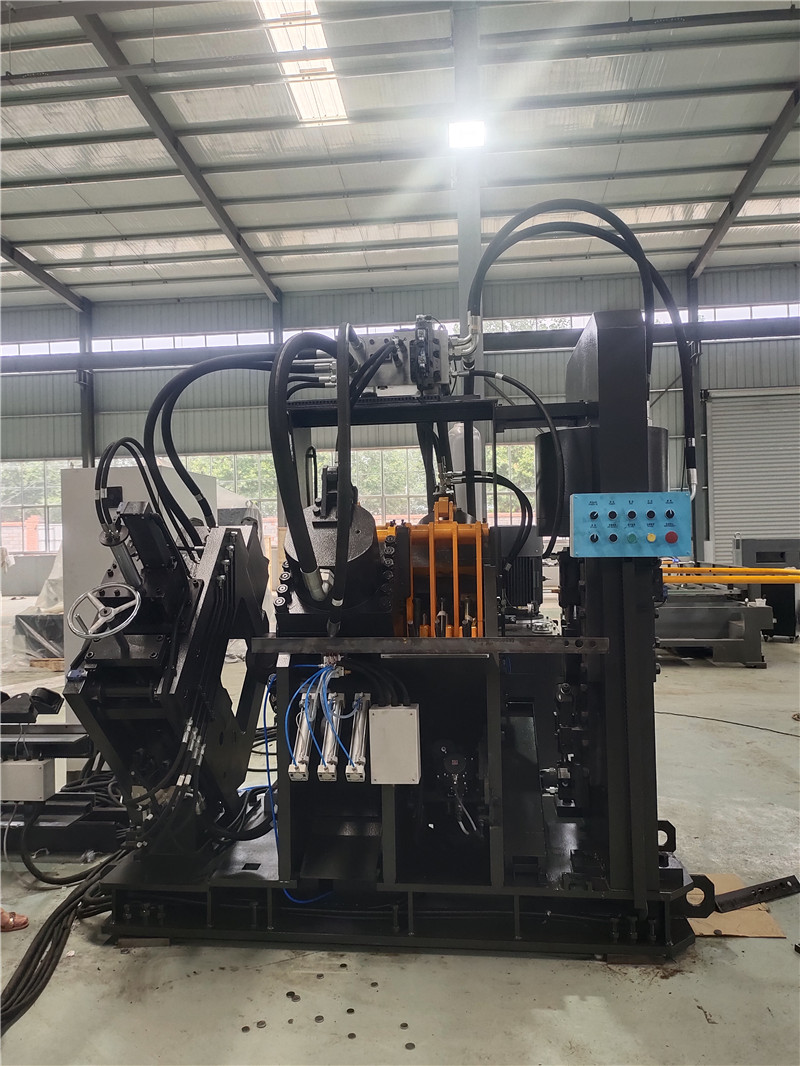

The marking unit is closed with good rigidity. The marking unit has four sets of cassettes which is chosen by programming and the typing stadia can be set at will.

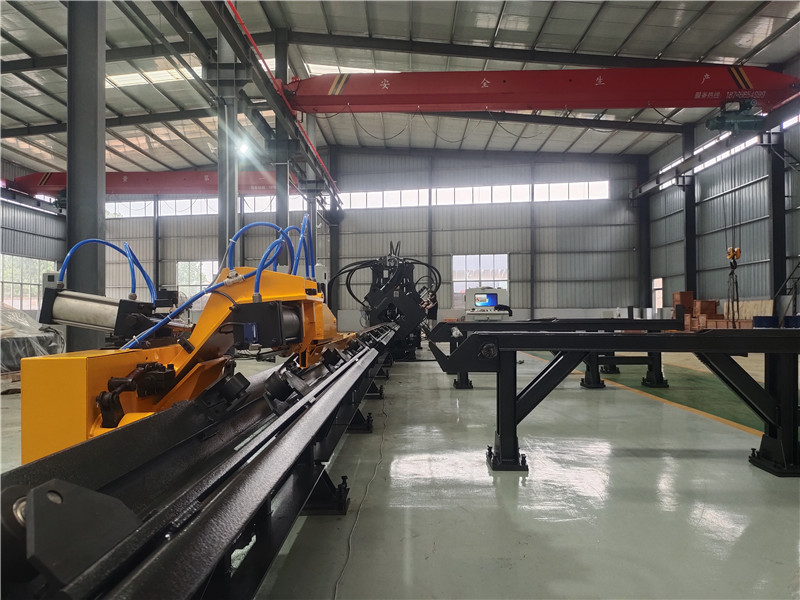

The transverse conveyor supports and transmits the raw material angle, and the rotating conveyor is driven by the reducer, which turns the raw material angle into the longitudinal feeding conveyor with smooth running.

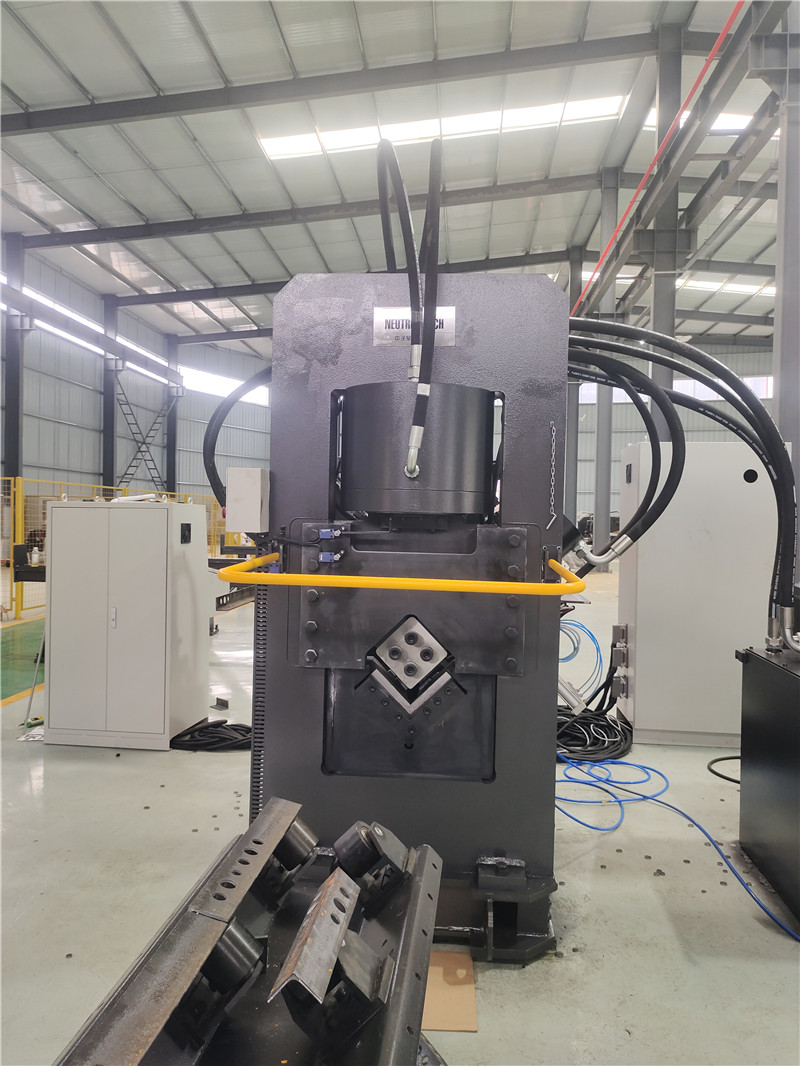

 The cutting unit adopts single blade shearing and there is no waste in each cutting.The cutting surface is neat.

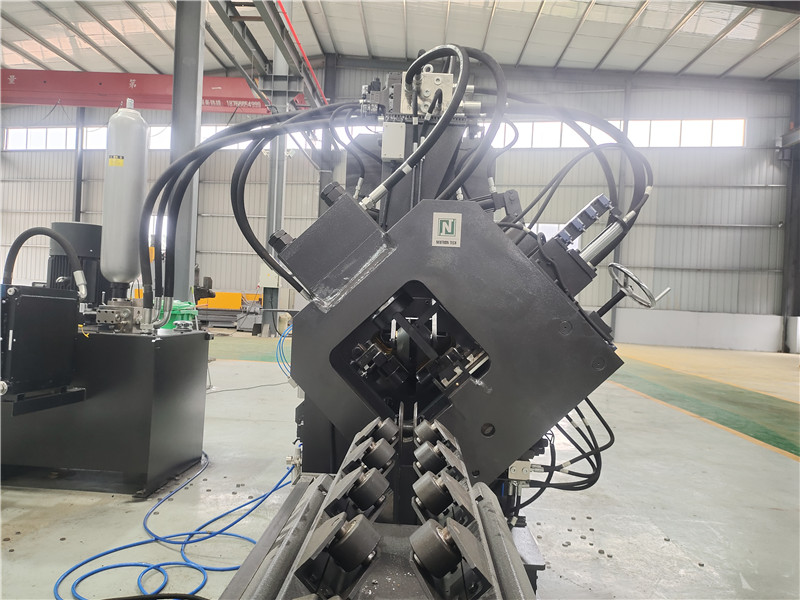

There are three sets of punching dies on each side of the punching unit, which can be installed with three kinds of punches with different diameters. The three sets of punching dies are moved by numerical control to change the stadia.

The supporting device of the punching unit  is driven by hydraulic cylinder, moving up and down very conveniently.

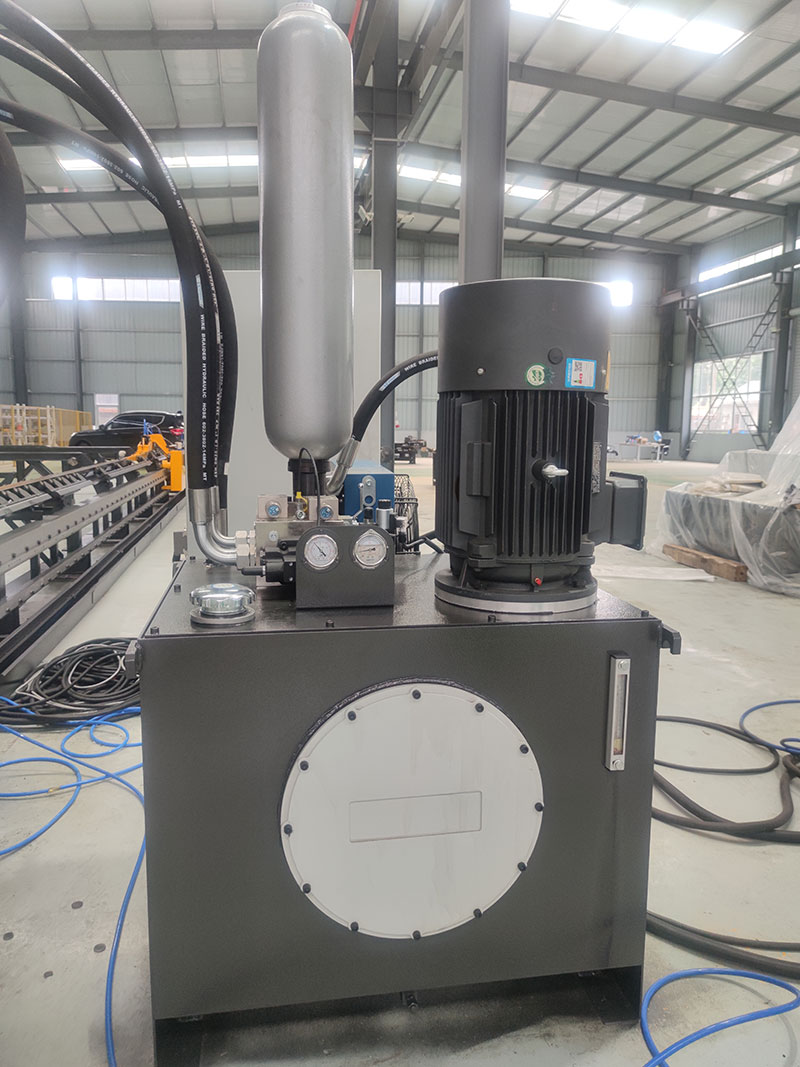

The hydraulic system mainly completes the punching, marking, cutting,marking unit moving, pressing material, supporting material and other functions, the hydraulic pipeline adopts sleeve type connection, not easy to leak oil, replacement and maintenance is convenient.
