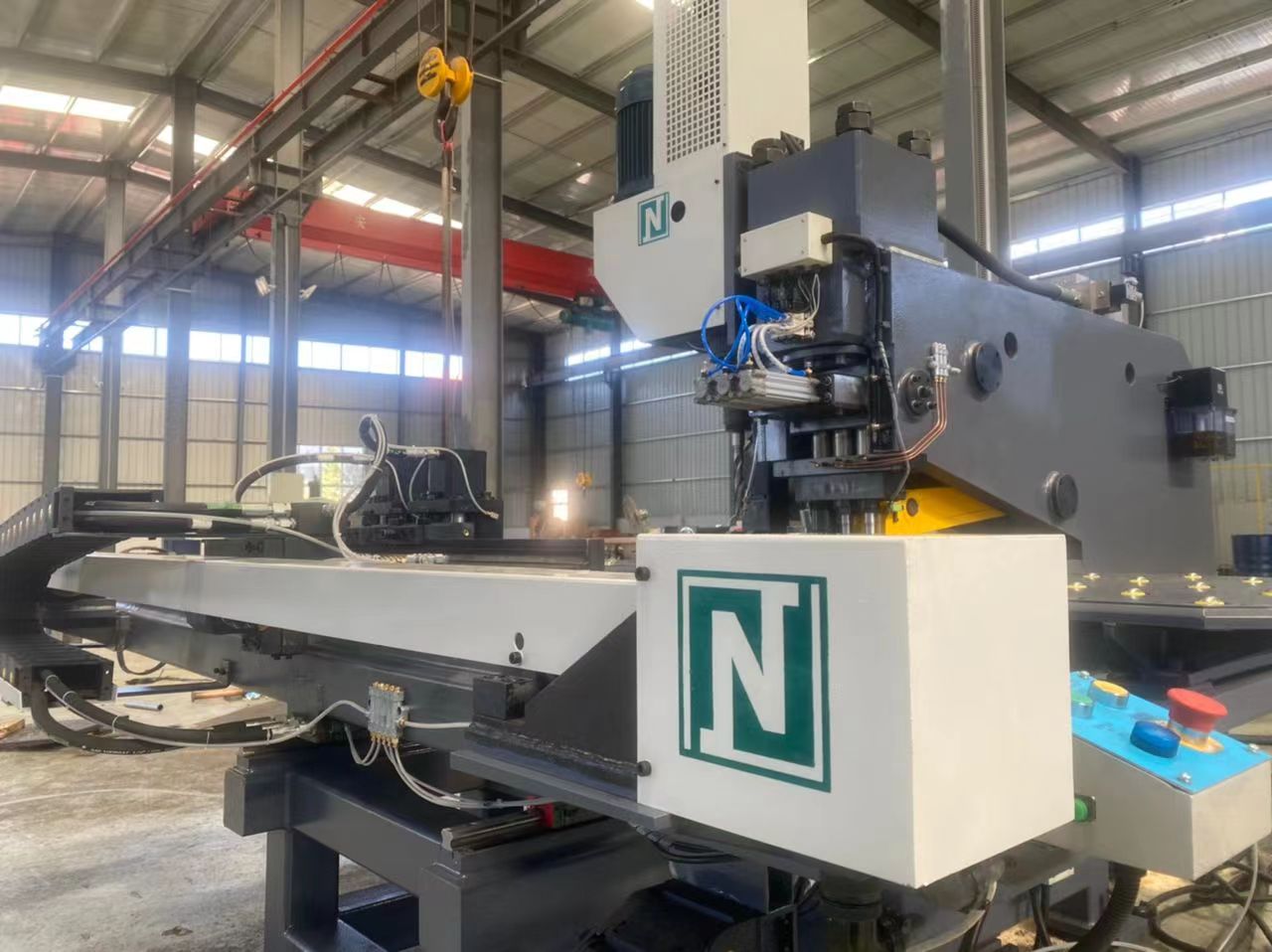

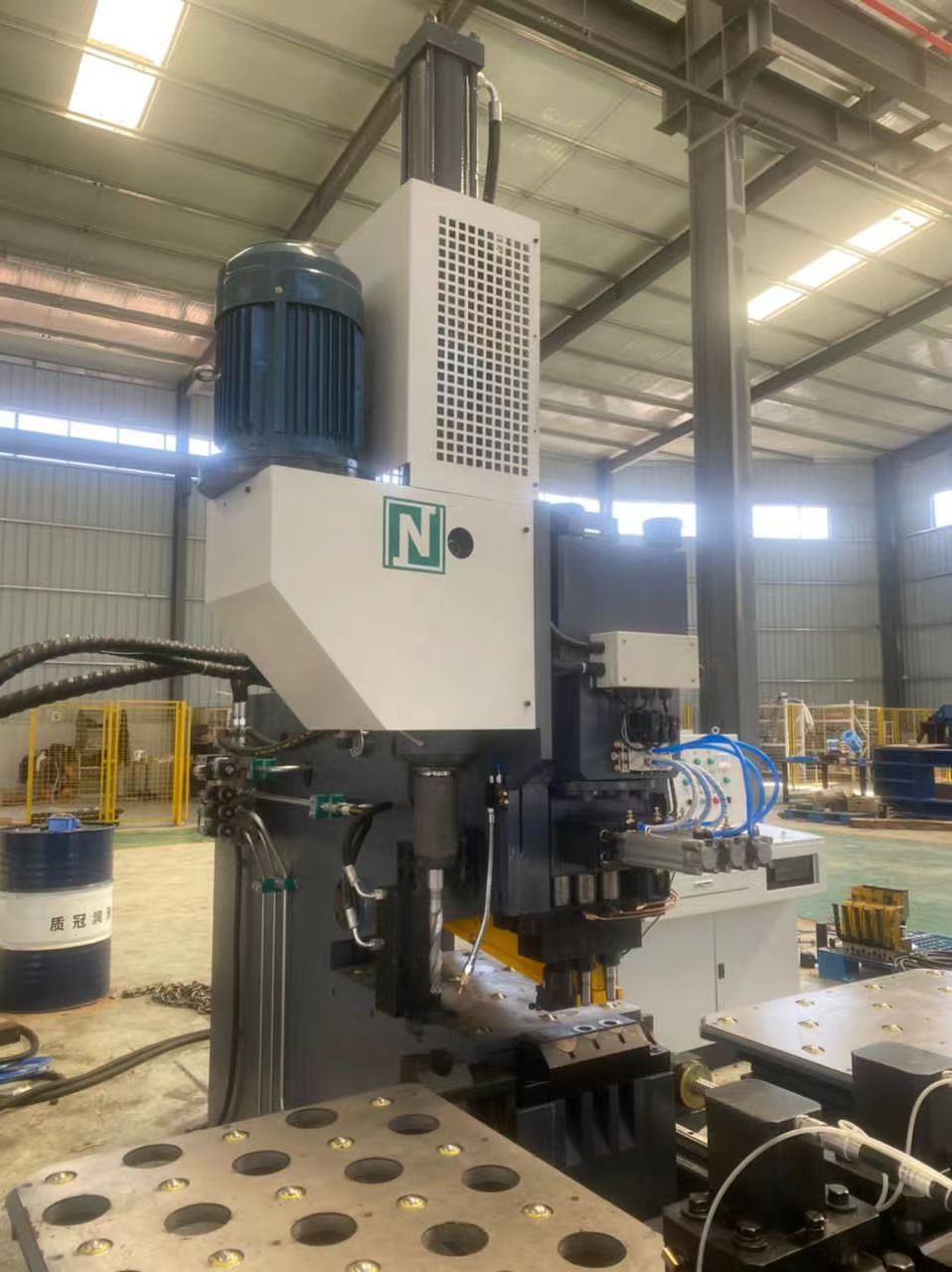

Main specifications of PPD103B:

1. The size of workpiece:

Thickness : 5 ~ 25mm

Max. size of workpiece : 1500×775mm

Min. edge distance of punching hole: 25mm

2. Punching capacity:

Punching force   :     1000KN

Max. punching diameter : φ25.5mm

Punching diameter×thickness:  Q235 σb ≤420MPa   φ25.5×25mm

                              16Mn σb ≤650MPa   φ25.5×20mm

3. The processing precision:

It can fit the stipulations of first-rate products in < the classifying="" standard="" of="" steel="" tower="" the="" transmit="" electricity="">

The specific numerical value

 a. The space between arbitrary holes on the joint plate: longitudinal: ±0.5mm

transverse :  ±0.5mm

b. Node plate: arbitrary space between two group holes ±1.0mm,

the space of the hole to the side of the steel plate ±1.0mm

c. The vertical degree, “t” is the thickness of plate ≤ 0.03t and ≤ 2mm

4. No. of clamps:    2

5. Marking capacity:

Marking force:          800KN

Character size:          14×10

No. of characters in one group:  10

6. No. of die-station:    3

Equipped with three kinds of punching die. Or equipped with two kinds of punching die of different specification and one group of characters.

7. No. of CNC axis  2

The stroke of X axis —— speed   1700mm——18m/min

The stroke of Y axis ——speed    760mm——18m/min

8. Motor power:

Oil pump motor                18.5KW

Servo motor of X axis            2KW

       Servo motor of Y axis            2KW

9. Hydraulic system:

   Working pressure of high-pressure pump      24MPa

   Working pressure of low-pressure pump       6MPa

   Volume of oil tank            500L

Cooling type            water cooling

Wearable hydraulic oil model HM46 is ok.

10. Pneumatic system:

   Working pressure: Max.       0.6MPa

                  Min.        0.5MPa

   Output volume of air compressor: 0.1m3/min, Max. pressure 0.7MPa is OK.

11. Electric specification:

   AC circuit of supply power:

   Type:               three phase

   Voltage:                 380V

   frequency:               50HZ

12. Overall dimension (L×W×H): 3326×2761×1840

13. Net weight: Approx.6000Kg

14. Working environment

1) Working power supply:three phase four line     380±10%V    50 ±1HZ

 2) Control power:                    220 ±10%V    50 ±1HZ

 3) Operation power:                  24V  DC

 4) Compressed air Pressure:             ≥ 0.5MPa

 5) Temperature of working environment:    0 - 40°C

6) Relative humidity of environment:             ≤ 75%

2.  List of accessories and spare parts of PPR103B

Notes : the above spare parts include those installed on the machine

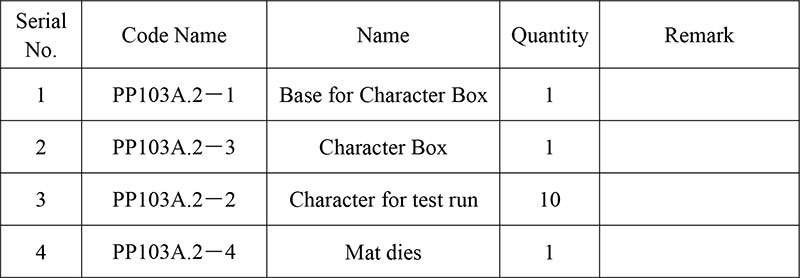

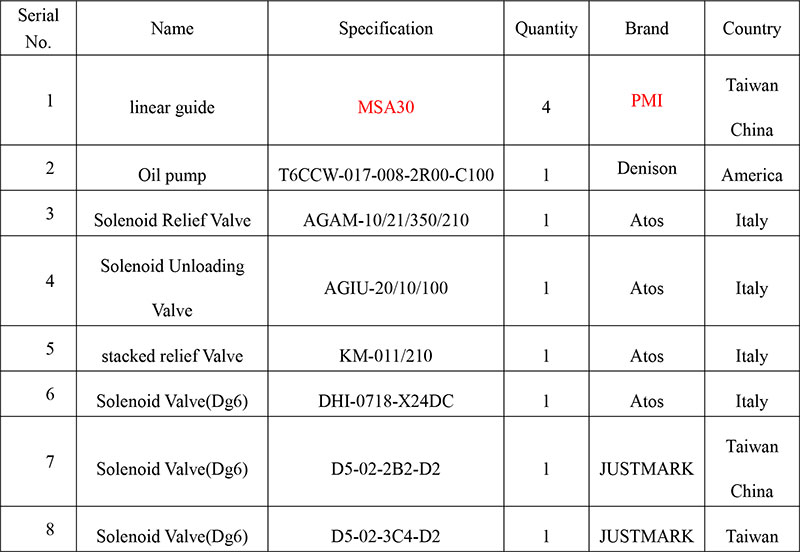

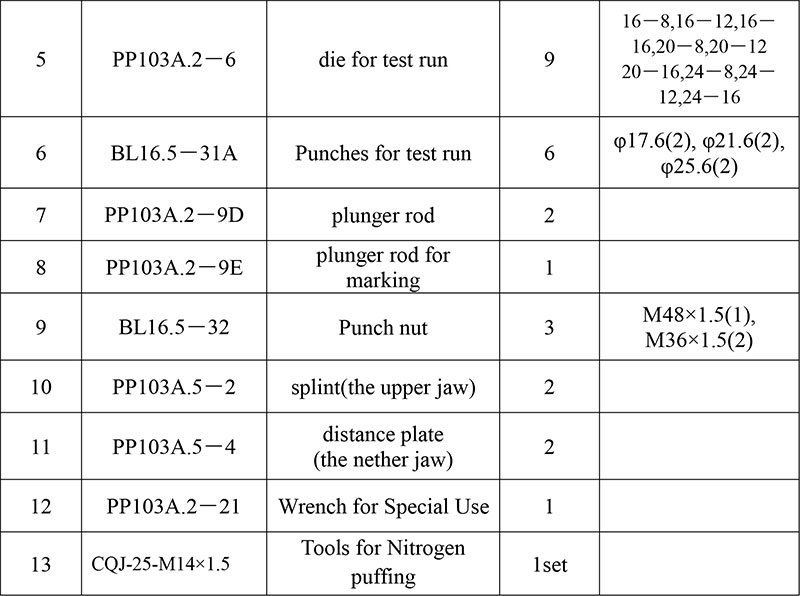

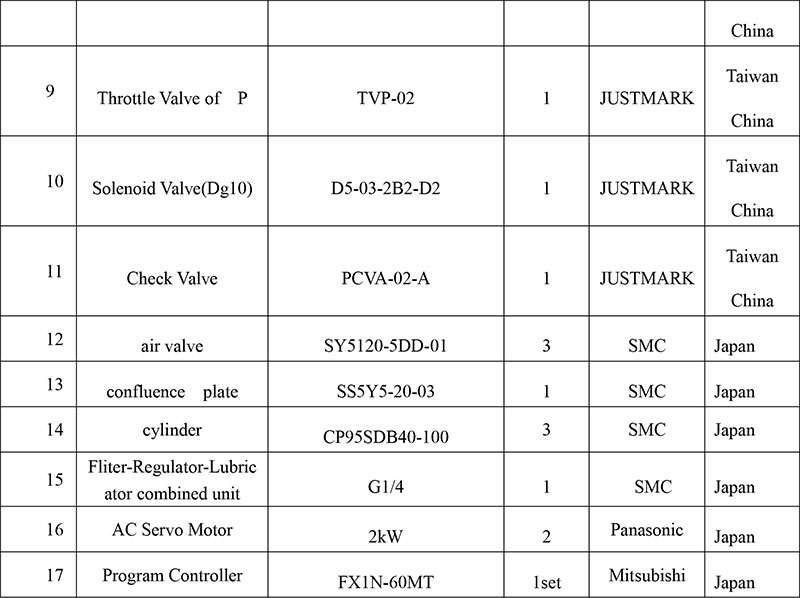

3. List of the main outsourcing components of PPR103B

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
