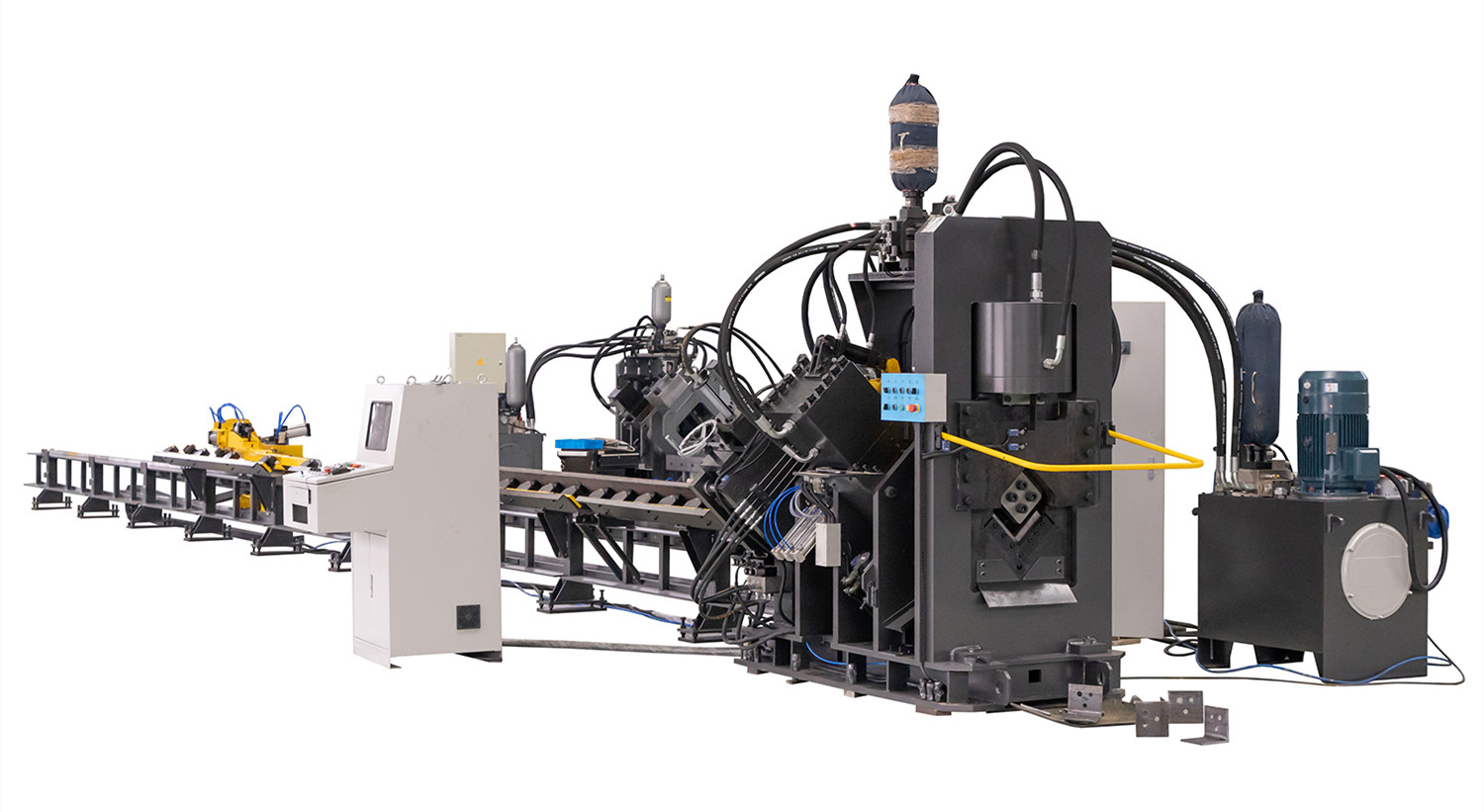

Technical specification of APM1010

1) Angle size:         ∠40×3 ~ ∠100×10(Q345)

2) Max. punching diameter:  Φ25.5mm  (8mm thickness, Q345)

Nominal punching force:   350KN

3) Nominal Marking force:   630kN

4) Nominal Cutting force: 1000KN

5) Max length of the raw angle :  12m

6) Quantity of punching head per side:  2

7) The quantity of punching row per side:  arbitrariness

8) Quantity of character group:   4 group

9) Dimension of characters:   14×10mm

10) Cutting mode:   Single-blade cutting

11) Quantity of CNC axes:      3

12) Angle feeding Speed: 60m/min

13) The size of machine: 25×7×2.2m

14) The finished angel conveyor is rotated to one side by pneumatic power. The max. length of finished angel is 8 m.

15) There are four transverse conveyors which can infeed automatically and intermittently.

16) Type of programming: keyboard input, USB interface input, floppy disc input.

17) Layout:

18) Working environment:

Working temperature: 0℃~ 40℃

Power: Three phase four wire system

AC Voltage: 380V

Fluctuation of voltage: ±10%

Frequency: 50 Hz
