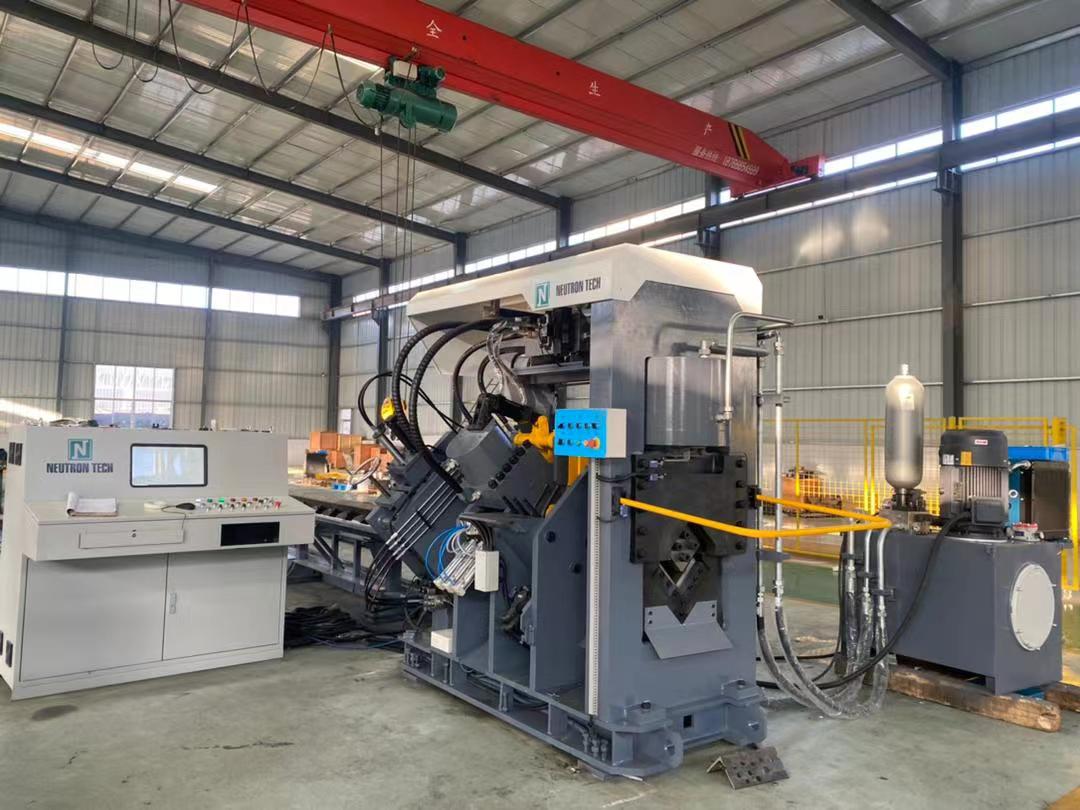

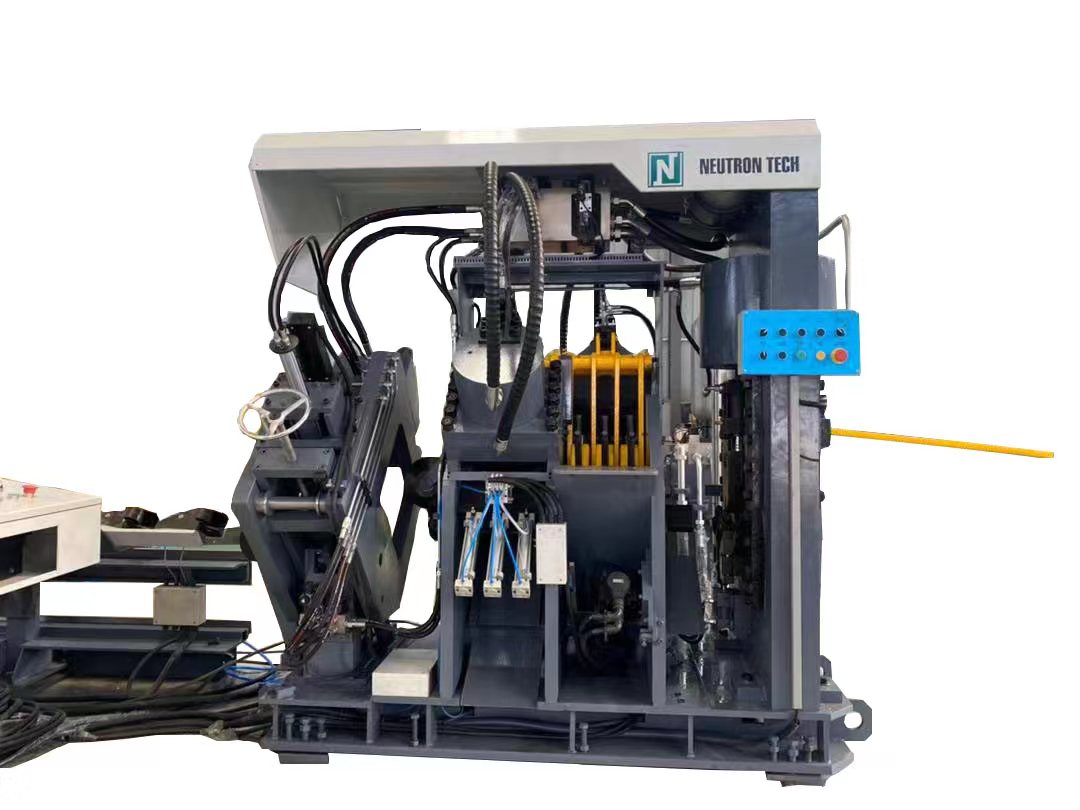

Technical specification of APM2020C

1) Angle size: ∠63×63×4 ~ ∠200×200×20

2) Max. punching diameter  φ25.5mm (20mm thickness ,  Q345)

Nominal punching force 1100KN

3) Quantity of punching head per side: 3

4) Quantity of punching row per side: arbitrariness

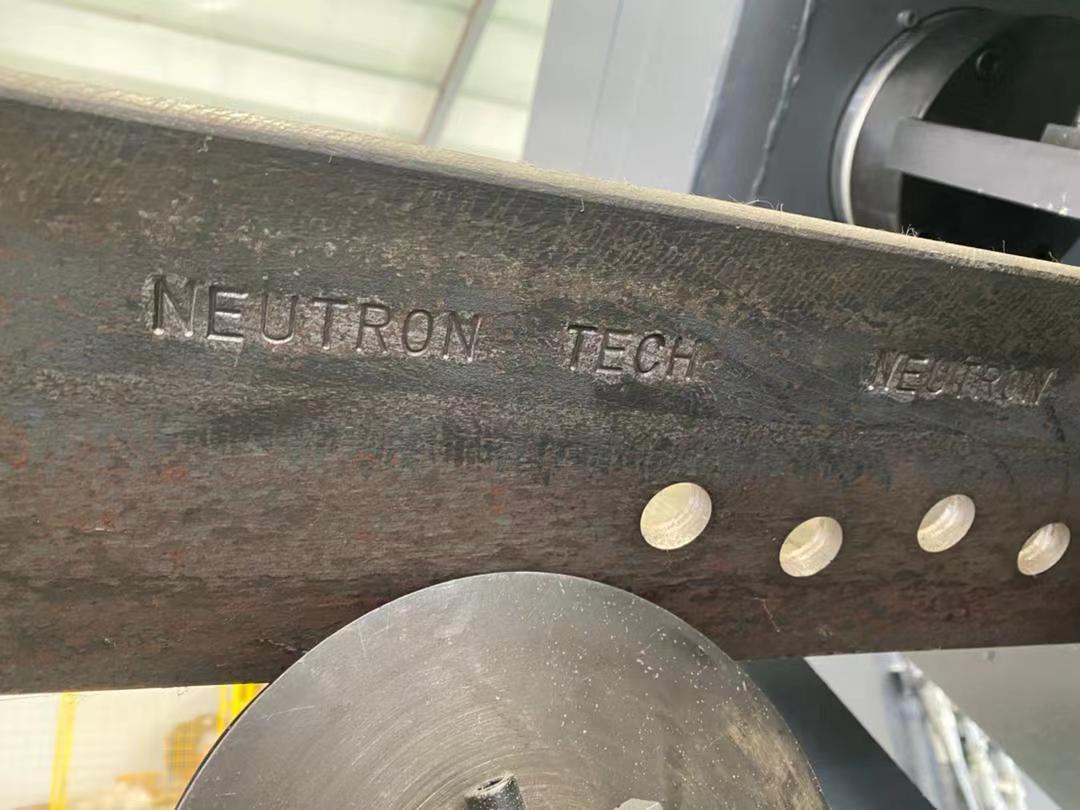

5) Quantity of character group: 4 groups, nominal Marking force:1030KN

6) Dimension of characters: 14×10mm(18)

7) Max. length of the raw angle: 14m

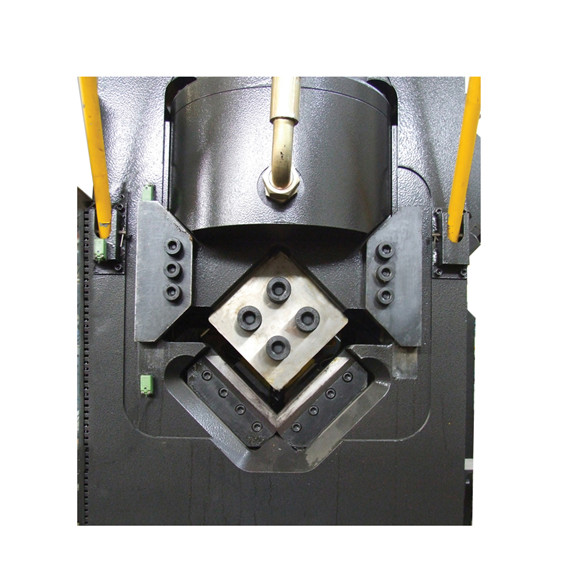

8) Cutting mode: single-blade cutting, nominal cutting force 4300kN

9) Quantity of CNC axes: 3

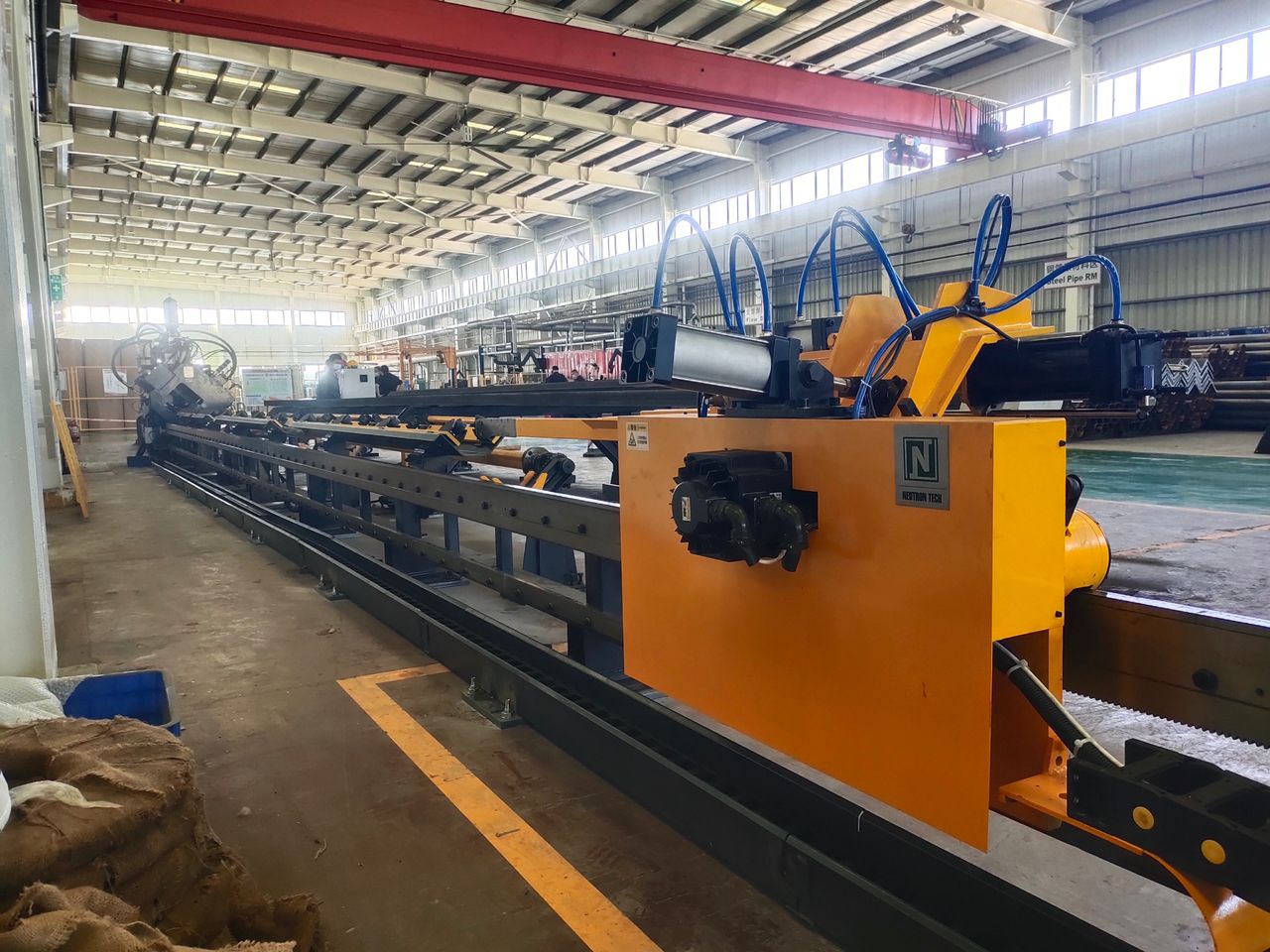

10) The finished angle conveyor is rotated to one side by pneumatic power, the max. length of finished angle is 12m.

11) There are four sets of transverse conveyor, infeed automatically and intermittently.

12) Air cooling

13) Angle feeding Speed: 40m/min, the efficiency is about 1000 holes/hour

14) Type of programming: keyboard input, USB interface input, floppy disc input, DSTV.

15) Layout:

16) Working environment:

Working temperature:  0℃~ 40℃

Power:  Three phase four wire system

AC Voltage:  380V

Fluctuation of voltage:  ±10%

Frequency:  50 Hz
