| Product number | PHD2016 | |
|---|---|---|
| Max. workpiece size | 2000*1600 | |
| Rotation speed | 0－2400r/min | |
| Max. Plate thickness | 150mm | |
| Max. Drilling diameter | Φ60 mm |
1.Use of PHD2016

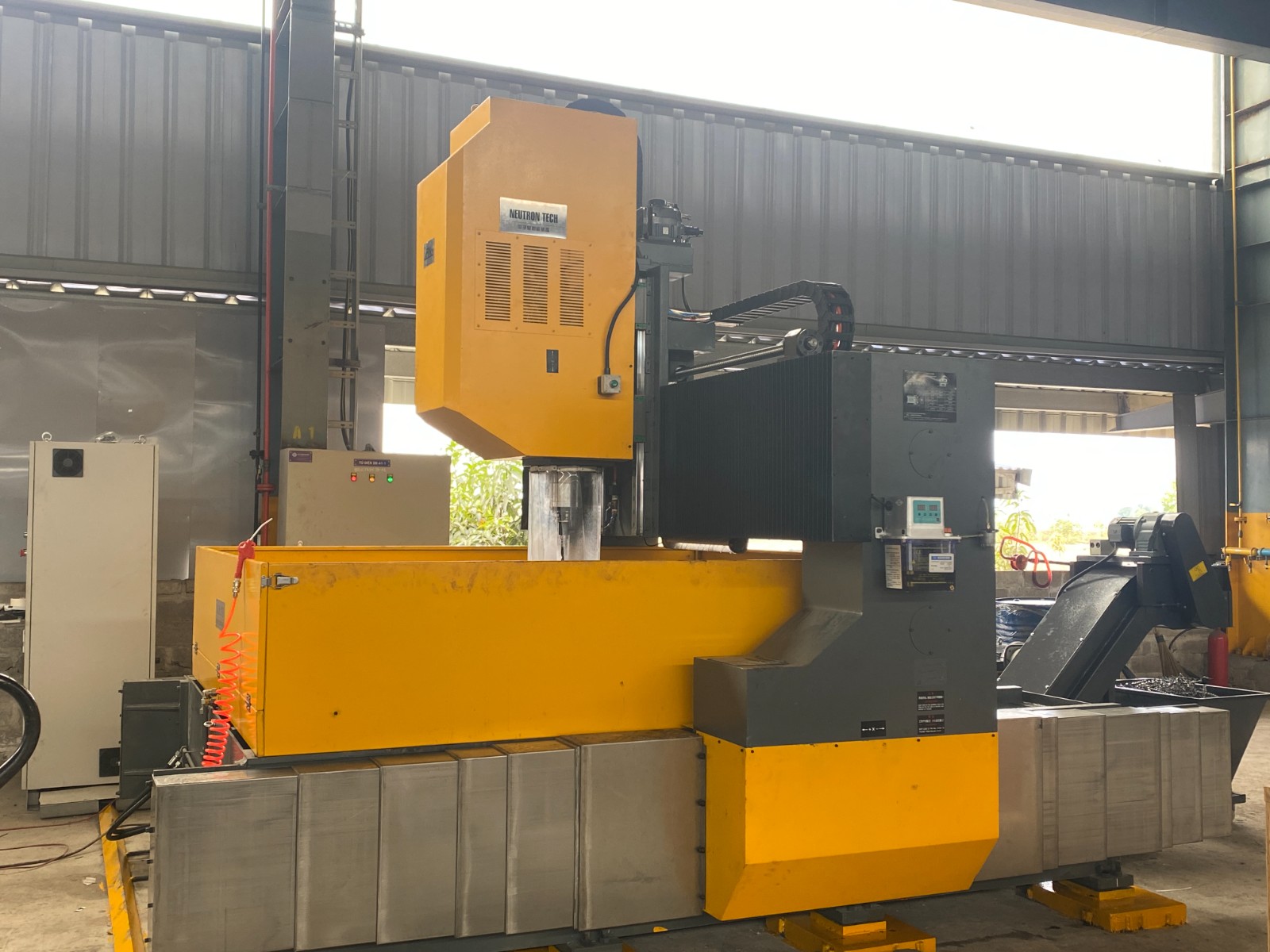

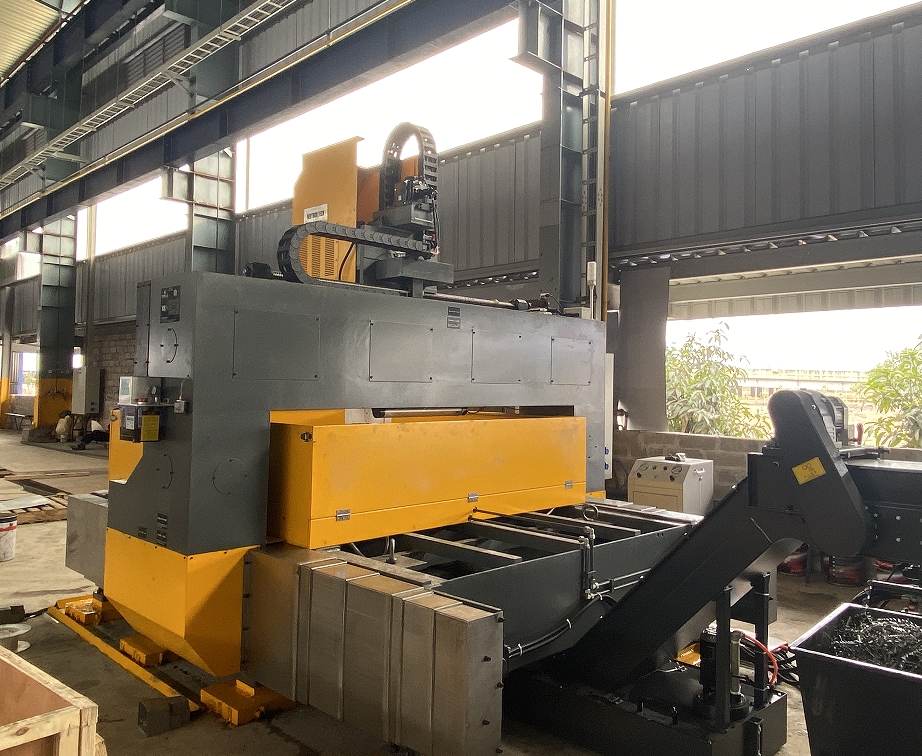

PHD2016 is a High-speed Drilling machine for steel plates max size 2000x1600x100mm. The positioning, feeding of three spindles are all driven by servo motors. It adopts Taiwan Precision Spindle and Gantry movable type, high efficiency, and high precision. Both of external cooling twist drills and internal cooling carbide drills can be adopted on this machine. Very easy to operate, the automation, high precision, economic of scoop and mid/small production can be realized.
2. PHD2016 CONSISTS OF THE BELOWED ITEMS
Machine Body
Gantry
Worktable
Drilling Spindles
Hydraulic Unit
Control System
Cooling Unit
Auto Lubrication System
Chips Cleaner
Parameter | Item | Value |
Workpiece | L×W | 2000 x 1600mm |
Max. Plate thickness | 150 mm | |
Worktable | T slot width | 22 mm |
Drilling Spindle | Max. Drilling diameter | Φ60 mm |
Plate thickness/diameter | ≤3（carbide drill bit） | |
Spindle rotary speed | 20-3000 r/min | |
Spindle taper | BT50 | |
Main motor power | 22kW | |
Spindle maximum torque n≤750r/min | 280Nm | |
Gantry longitudinal traverse( X axis ) | Max. Stroke | 2000 mm |
X axis moving speed | 0—8m/min | |
X axis servo motor power | 2× 2.0kW | |
Spindle transverse movement （Y axis ） | Max. Stroke | 1600mm |
Y axis moving speed | 0—8m/min | |
Y axis servo motor power | 2.0kW | |
Spindle feeding movement （Z axis ） | Z axis stroke | 350 mm |
Z axis feeding speed | 0—5m/min | |
Z axis servo motor power | 2.0 kW | |
Positioning accuracy | X axis ,Y axis | 0.08mm |
Repeated positioning accuracy | X axis ,Y axis | 0.04mm |
Pneumatic system | Air supply pressure | ≥0.8MPa |
Chip removal and cooling | Chip removal type | Flat plate chain type |
Chip removal motor power | 0. 45kW | |
Cooling type | Inner cooling +outer cooling | |
Electrical system | Control type | PLC |
Number of CNC axes | 4 |
