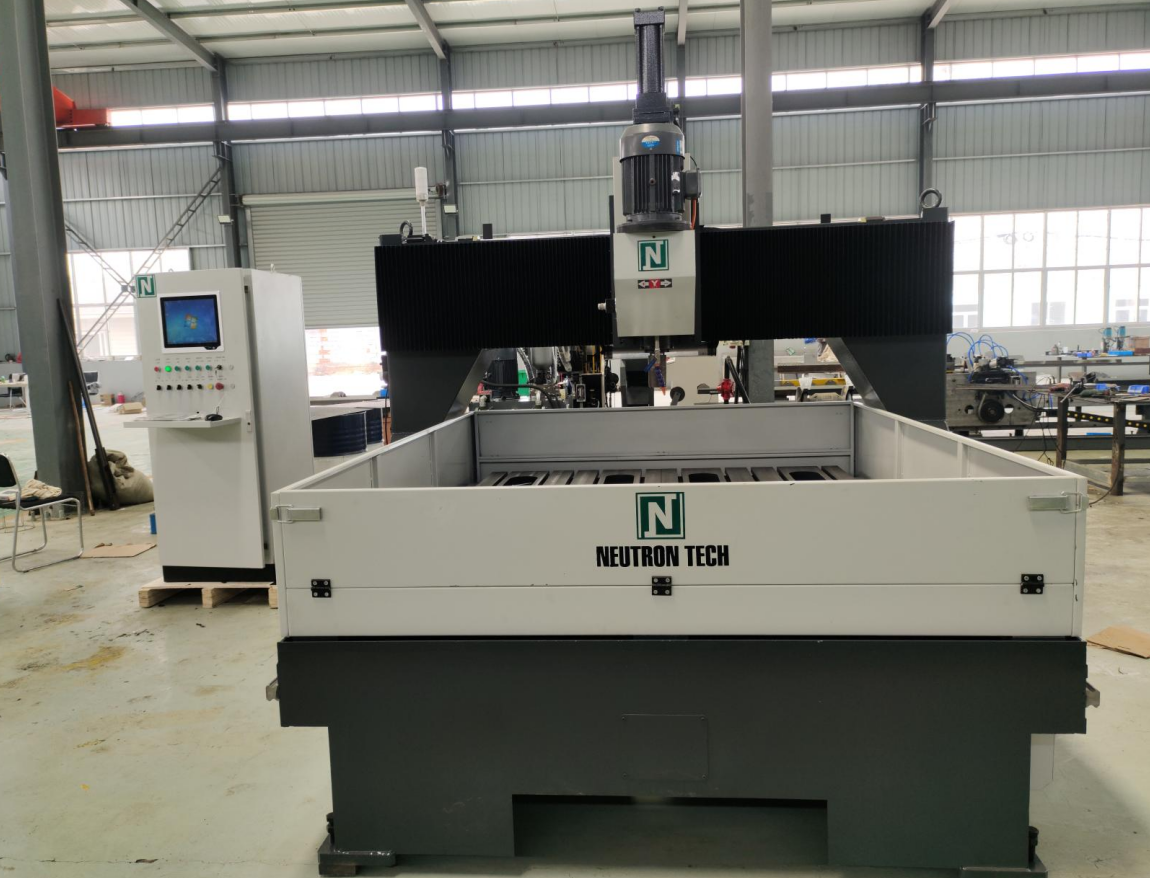

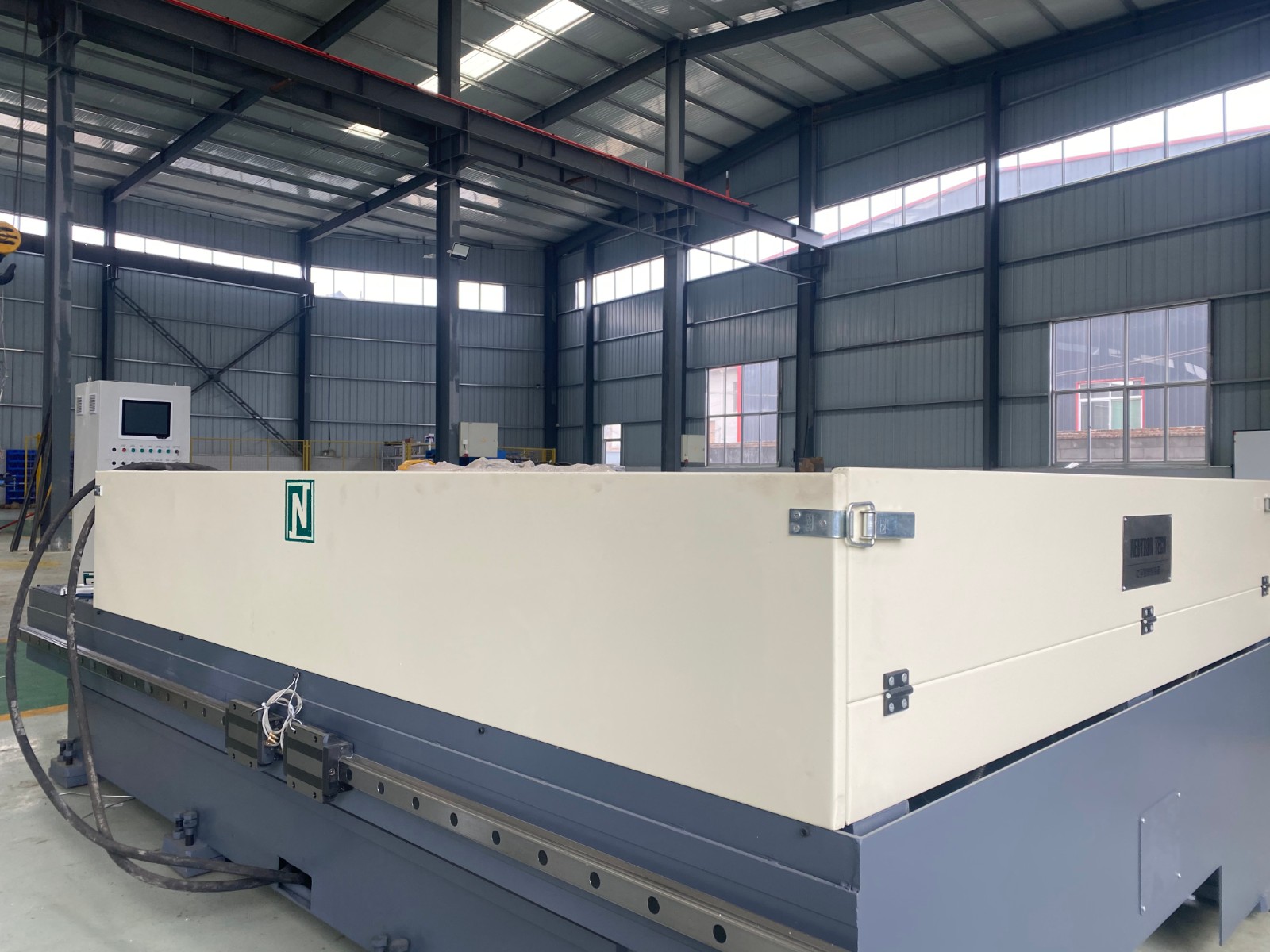

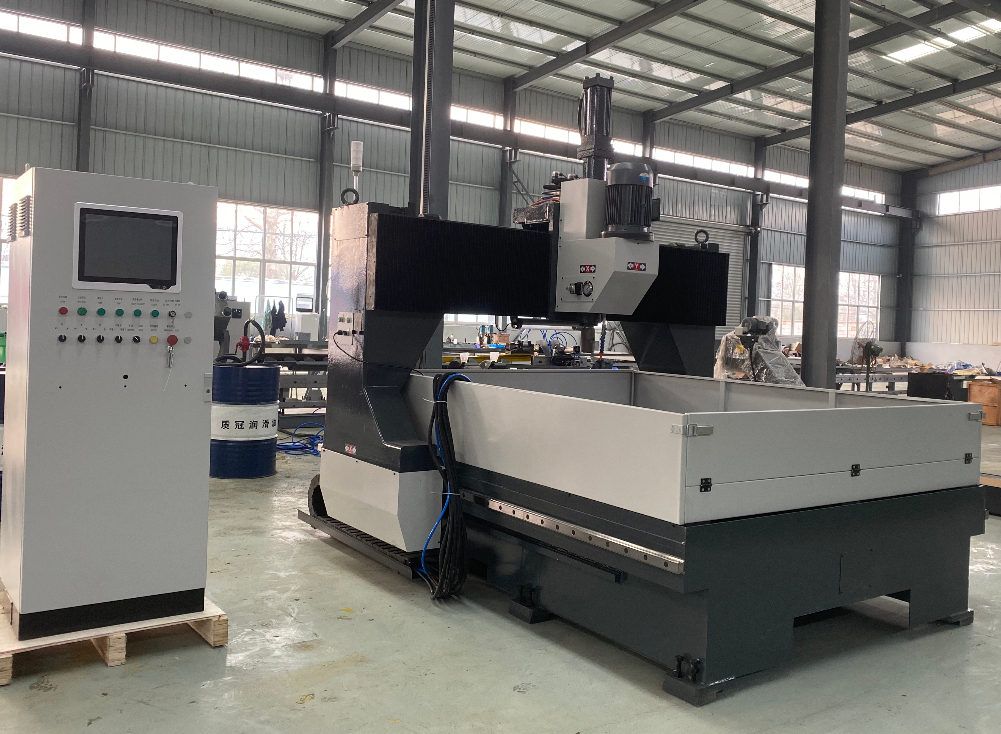

Size of work piece

Thickness

Max.100mm

Width ×length

2000mm×1600mm　　　one piece

1600mm×1000mm　　　two pieces

1000mm×800mm　　　four pieces

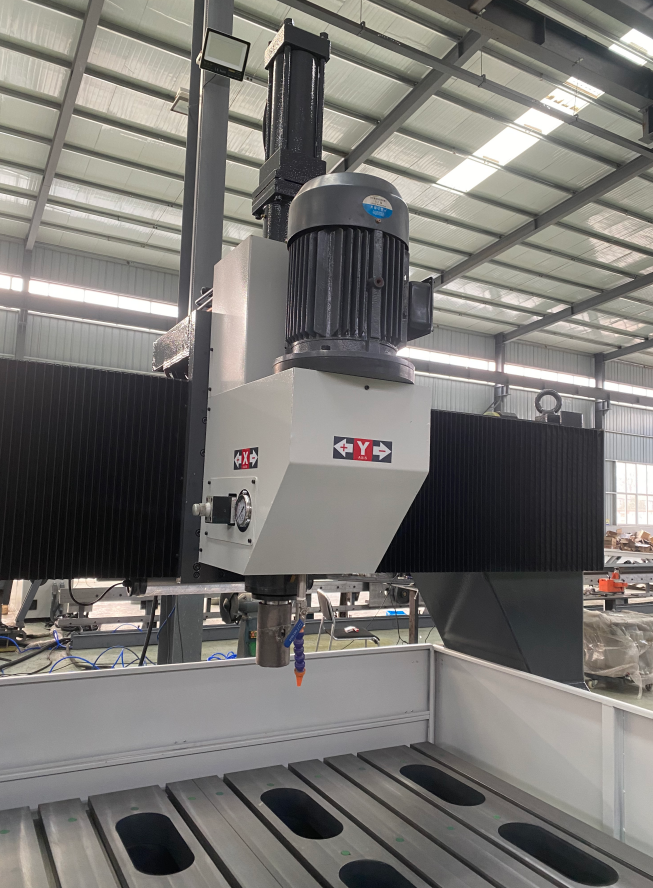

Drilling Spindle

Quick change chuck

Morse Taper 3#,4#

Diameter of Drilling head

Φ12mm-Φ50mm

Variable speed mode

Stepless speed adjustment

Rotation speed

120－560r/min

Max. feeding stoke

180mm

Feeding

Hydraulic Stepless speed adjustment

Clamping

Clamping thickness

15－80mm

Number of clamps

12 pieces

Clamping force

7.5KN

Clamping start

Foot switch

Cooling water

Type

Forced circulation

Hydraulic

Clamping

6MPa（60kgf/cm²）

Volume

100L

Air force

Air supply

0.4MPa（4kgf/cm²）

Servo Motor

Axis

5.5KW

Hydraulic pump

2.2KW

Cooling pump

0.25KW

Motor of chip removal device

0.75KW

Servo motor of X axis

2KW

Servo motor of Y axis

1KW

Size

L×W×H

About 5183×2605×2474mm

Weight

Machine

5600kg

Chip removal system

800kg

Stroke

X axis

2000mm

Y axis

1600mm

Max speed

10000mm/min
