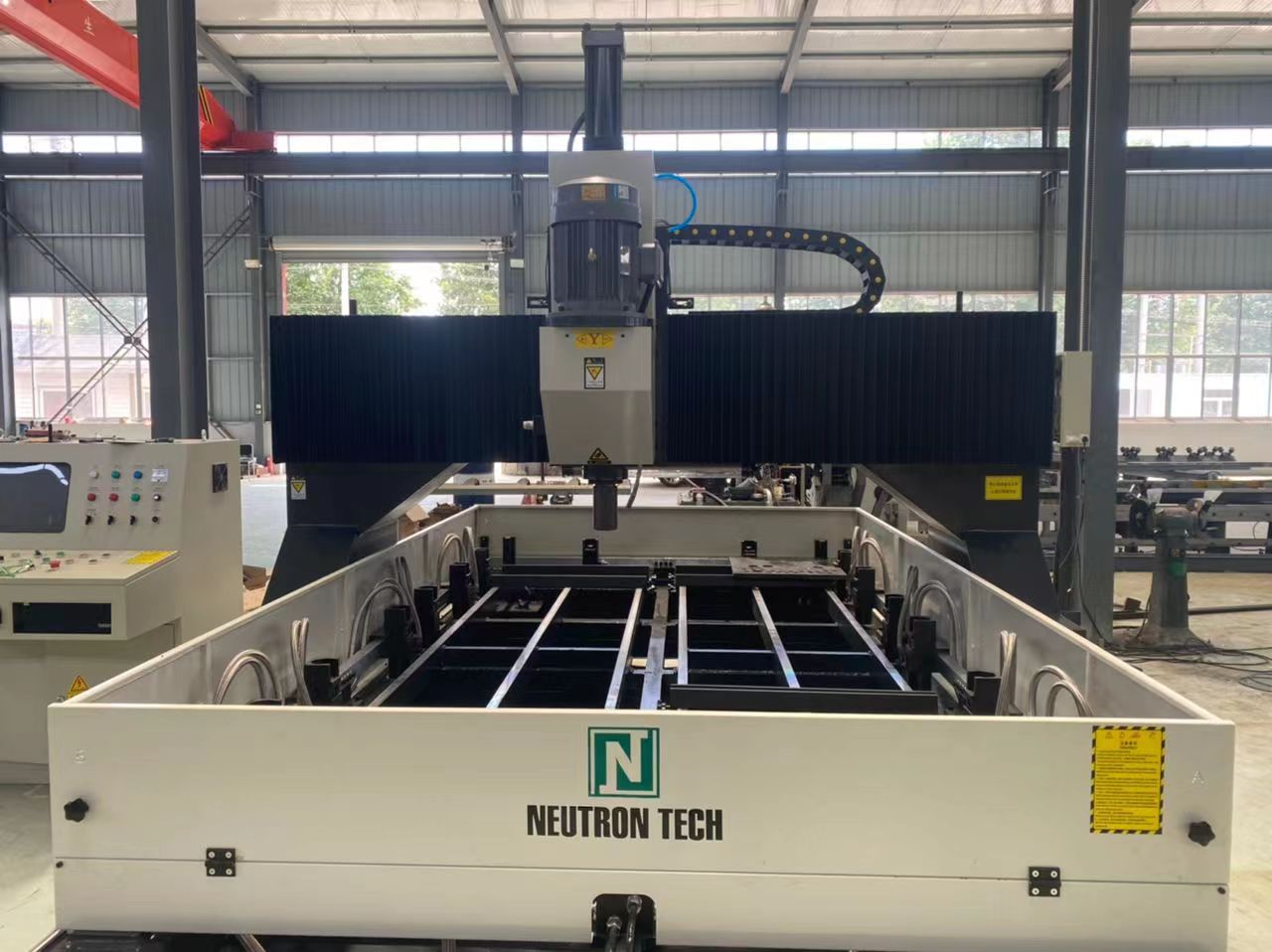

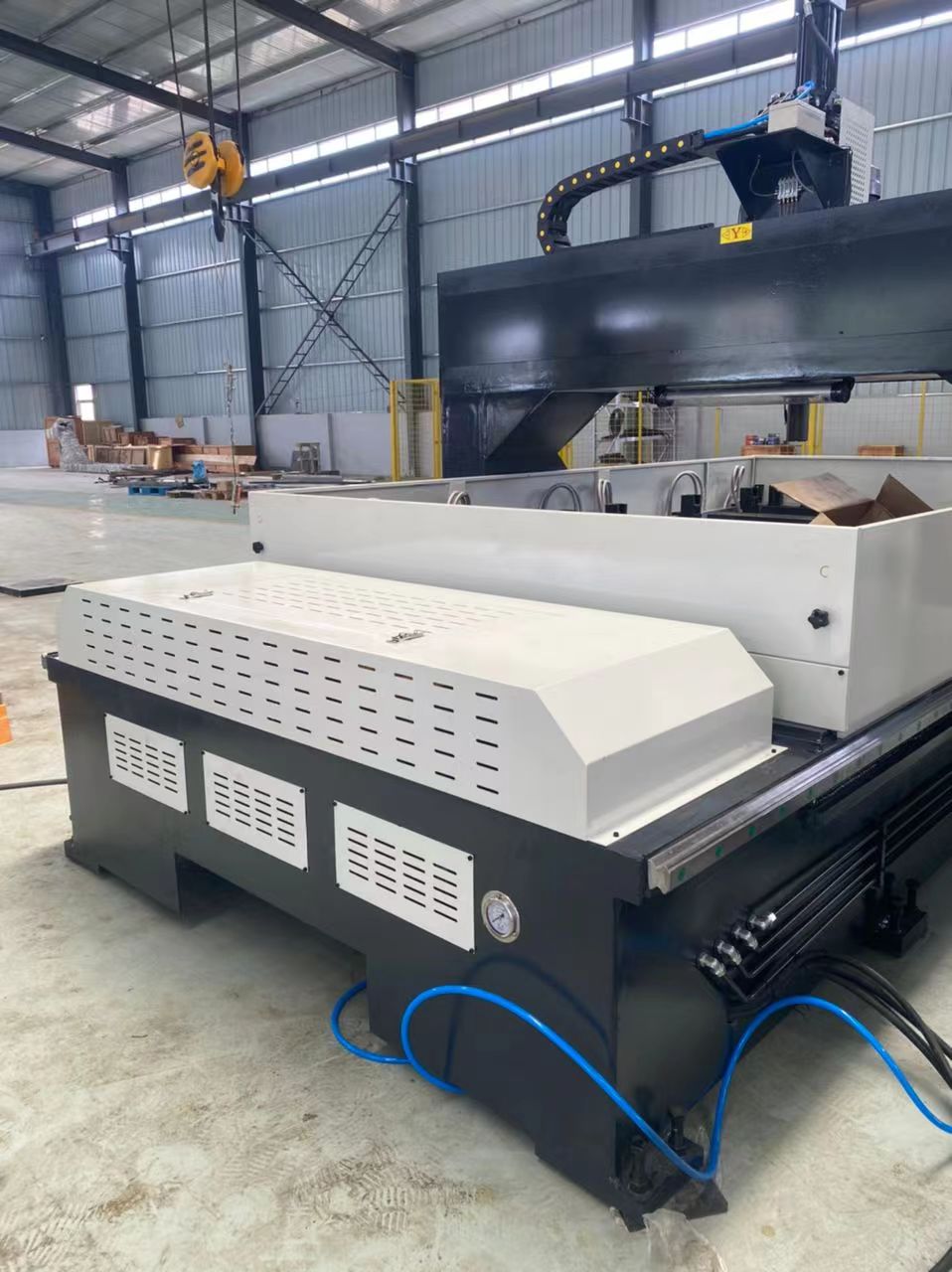

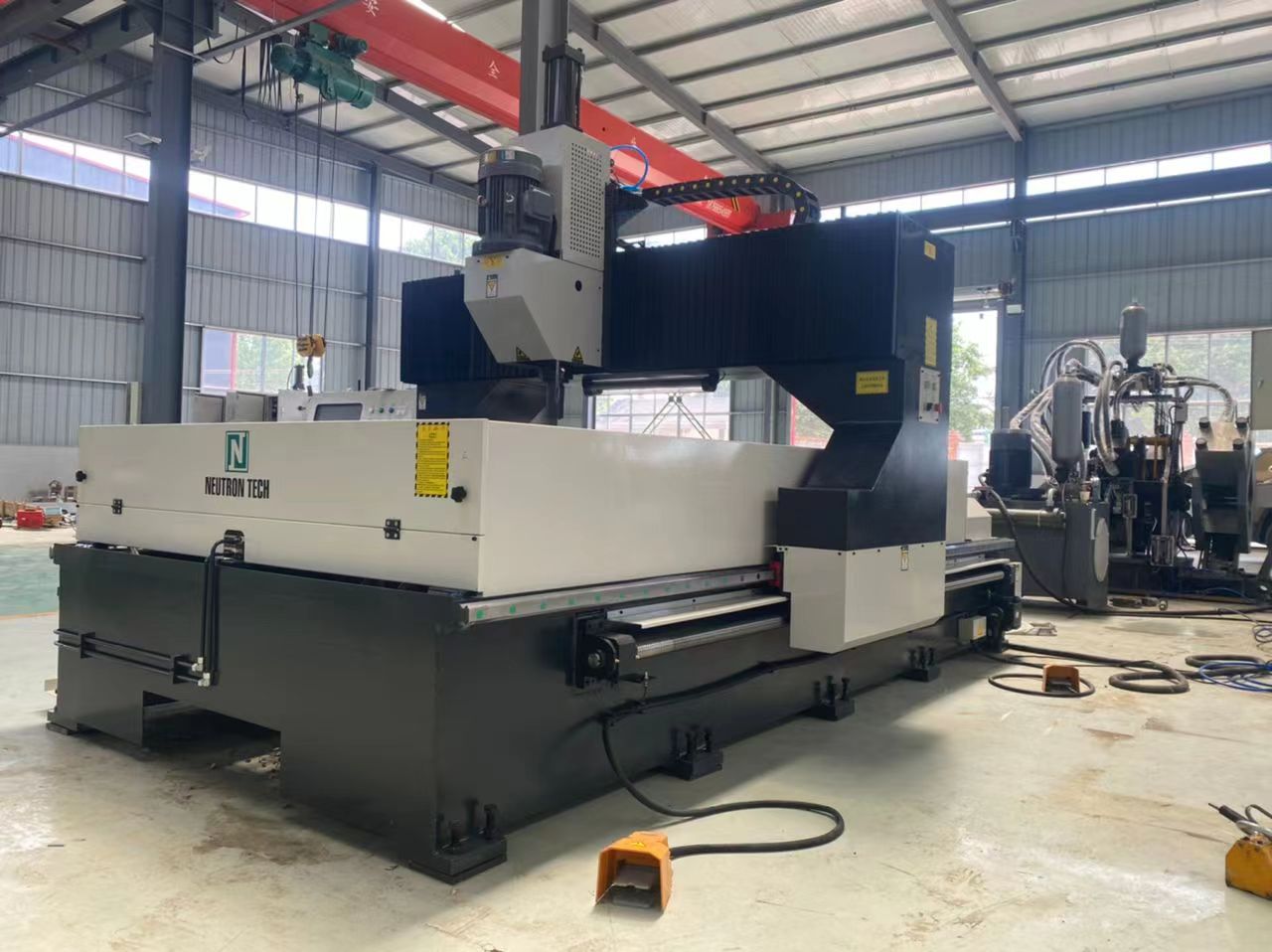

Size of work piece

Thickness

Max.80mm

Width ×length

1600mm×3000mm　one piece

1500mm×1600mm　two pieces

800mm×1500mm　four pieces

Axis

Quick change chuck

Morse Taper 3# 4#

Diameter of Drilling head

Φ12mm-Φ50mm

Variable speed mode

Stepless speed adjustment

rotation speed

120－560r/min

max. feeding stoke

240mm

Feeding

Hydraulic Stepless speed adjustment

Clamping

Clamping thickness

15－80mm

Number of clamps

12 pieces

Clamping force

7.5KN

Clamping start

Foot switch

Cooling water

Type

Forced circulation

Hydraulic

clamping

6MPa（60kgf/cm2）

Volume

100L

Air force

Air supply

0.6MPa（4kgf/cm2）

Servo Motor

Axis

5.5KW

Hydraulic pump

2.2KW

Servo motor of chip removal device

0.4KW

Cooling pump

0.25KW

Servo motor of X axis

1.5KW

Servo motor of Y axis

1.0KW

Servo motor of Z axis

1.0kW

Size

L×W×H

About 5560×4272×2449mm

Weight

Machine

7600kg

Chip removal system

400kg

Stroke

X Axis

    3000mm

Y Axis

　　 1600mm

Postioning speed

Max. 8000mm/min
